Description

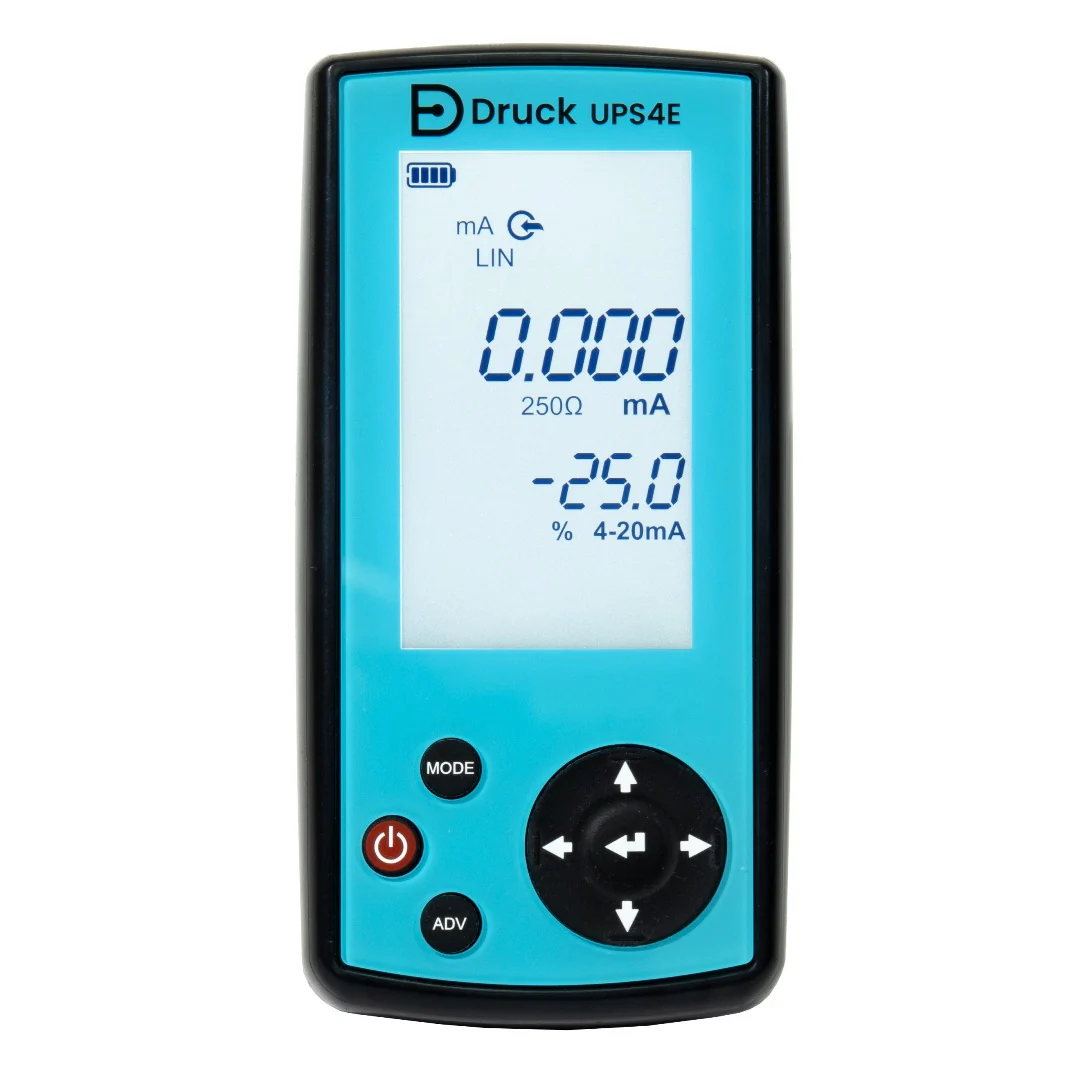

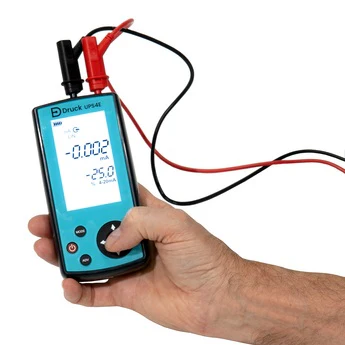

The Druck UPS4E is a rugged, compact handheld electrical loop calibrator designed for testing, calibrating and troubleshooting 4–20 mA process control loops. As the successor to the popular UPS-II and UPS-III series, it combines high accuracy, intuitive operation and advanced loop calibration functions in a lightweight instrument that can be comfortably operated with one hand.
The UPS4E measures, sources and simulates 0–24 mA signals while providing an integrated 24 V loop power supply for transmitter testing. It features dual mA and percentage display, automatic step and ramp outputs, valve check, span check, continuity testing and 30 V DC voltage measurement. An integrated 250 Ω HART® resistor allows convenient connection to HART-compatible transmitters without external resistors.

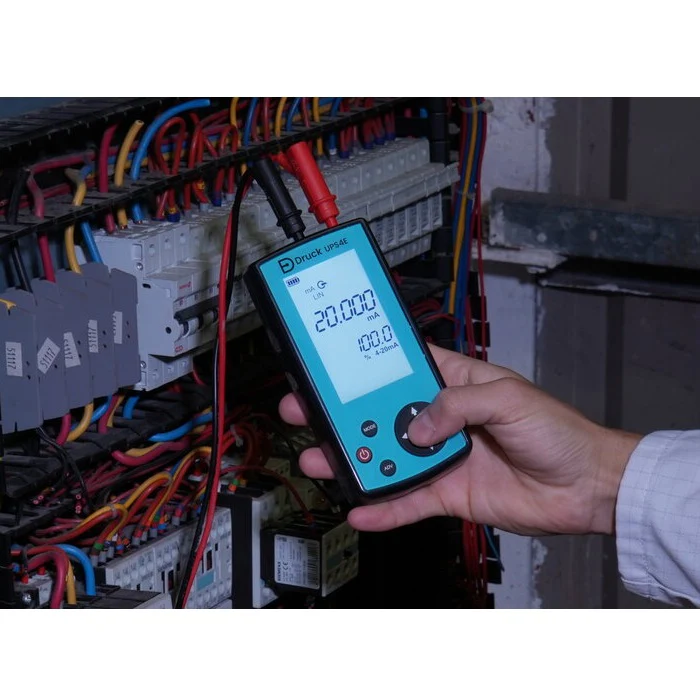

Designed for industrial field maintenance, the UPS4E also includes onboard data logging for up to 100,000 readings, USB-C connectivity, long battery life and an easy-to-read backlit display. It is ideal for technicians working in process industries including oil & gas, chemical, power generation, water treatment and manufacturing.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | UPS4E |
| Product Type | Handheld Electrical Loop Calibrator |
| Current Measure Range | 0 to ±24 mA |
| Current Source Range | 0 to ±24 mA |
| Supported Loop Types | 0–20 mA & 4–20 mA |
| Current Accuracy | ±0.01% of Reading ±1 Count |
| Current Resolution | 0.001 mA |
| Voltage Measurement | Up to ±30 V DC |
| Loop Power Supply | 24 V DC |
| HART® Support | Built-in 250 Ω Resistor |
| Display | Dual mA & % Display |
| Output Functions | Step, Ramp, Span Check & Valve Check |
| Continuity Test | Yes |
| Data Logging Capacity | Up to 100,000 Readings |
| USB Interface | USB Type-C |
| Power Supply | 4 × AA Alkaline Batteries |
| Battery Life | Long-Life with Auto Power-Off |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 0–90% RH (Non-Condensing) |
| Dimensions | Approx. 145 × 73 × 25 mm |
| Weight | Approx. 318 g |
| Applications | Loop Calibration, Transmitter Testing, Process Maintenance & HART Device Verification |
Standard Accessories (Included)
- Druck UPS4E Handheld Electrical Loop Calibrator
- 4 × AA Alkaline Batteries
- Test Lead Set
- USB Type-C Cable
- Factory Calibration Certificate
- Quick Start & Safety Guide
Optional Accessories
- Protective Carrying Case
- Replacement Test Leads
- USB Communication Accessories
- Calibration Software Support
- Spare Battery Set
The standard package includes the UPS4E loop calibrator, AA batteries, test leads, USB Type-C cable, factory calibration certificate, and quick start & safety documentation. Optional accessories are available separately.
