Description

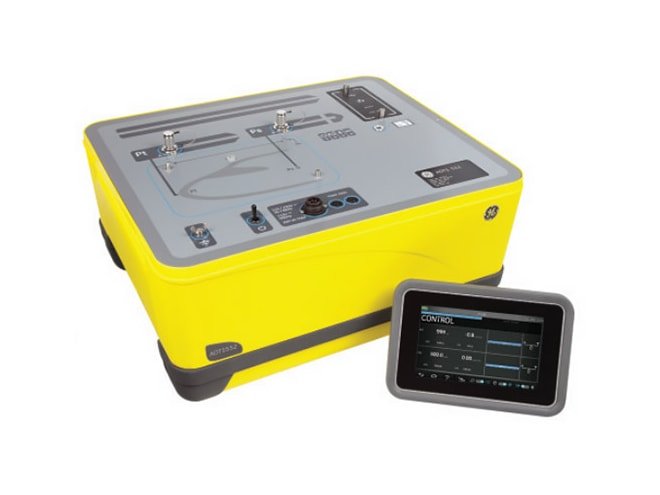

The Druck ADTS 553F is a portable, self-contained three-channel Pitot Static Tester and Air Data Test Set designed for aircraft pitot-static testing, air data validation, leak testing, fault finding and avionics instrumentation testing.
The ADTS 553F provides the same two-channel pitot-static capability as the ADTS 552F, with an additional third pressure controller for connection to the aircraft’s second static pressure channel (Ps2). This enables simulation and testing of Angle of Attack (AOA) systems. The unit can also be configured through the ADTS Touch menu for standard two-channel pitot-static testing.
Advanced Druck TERPS® pressure sensor technology delivers the accuracy and long-term stability required for RVSM validation. Proportional pressure control combined with a high-capacity internal pump provides smooth pressure changes when testing aircraft with large pitot-static volumes.

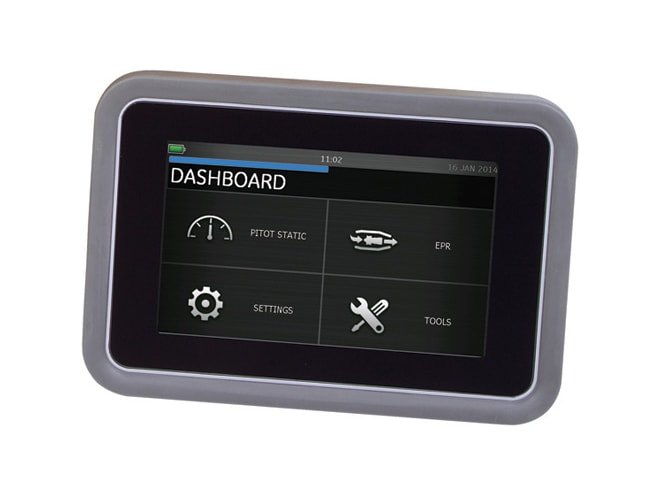

The supplied ADTS Touch hand terminal allows technicians to operate the tester remotely from the aircraft cockpit using secure Bluetooth® wireless communication or a wired connection. Programmable aircraft safety limits, automatic leak recovery and stored test sequences help improve testing efficiency and protect connected aircraft systems.
Designed for changing aircraft maintenance requirements, the ADTS 553F can be retrospectively upgraded by Druck to the four-channel ADTS 554F configuration
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | ADTS 550F Series |
| Model | ADTS 553F |
| Product Type | Pitot Static Tester / Air Data Test Set |
| Configuration | Portable, Self-Contained Flightline System |
| Number of Channels | 3 Channels |
| Pressure Channels | Ps1, Ps2 & Pt |
| Operating Modes | 2-Channel or 3-Channel |
| Primary Application | Aircraft Pitot-Static & Air Data Testing |
| Third-Channel Function | Angle of Attack (AOA) Simulation |
| Aircraft Compatibility | Light Aircraft to Wide-Body Passenger & Freight Aircraft |
| RVSM Validation | Supported |
| Pressure Sensor Technology | TERPS® |
| Pressure Control Technology | Proportional Pressure Control |
| Altitude Range | -3,000 to 60,000 ft |
| Extended Altitude Option | -3,000 to 65,000 ft |
| Altitude Resolution | 1 ft |
| Altitude Accuracy | ±3 ft at Sea Level; ±7 ft at 29,000 ft; ±12 ft at 41,000 ft |
| Ps1 & Ps2 Aeronautical Range | 56 to 1,130 mbar Absolute |
| Ps1 & Ps2 Measurement Range | 35 to 1,400 mbar Absolute |
| Pressure Resolution | 0.01 mbar |
| Ps Accuracy | ±0.10 mbar Absolute |
| Standard Airspeed Range | 20 to 650 knots |
| Airspeed Resolution | 0.1 knot |
| Pt Range | 56 to 1,997 mbar Absolute |
| Low Airspeed Option | Available |
| Rate of Climb | Supported |
| Mach Simulation | Supported |
| Engine Pressure Ratio (EPR) | Optional |
| Rate Control | Ps, Pt, Qc, CAS, EPR & Rate of Climb |
| Leak Testing | Supported |
| Automatic Leak Recovery | Supported |
| Aircraft Safety Limits | Programmable |
| Test Sequence Storage | Supported |
| Remote Control | ADTS Touch Hand Terminal |
| Wireless Communication | Secure Bluetooth® |
| Wired Operation | Supported |
| ADTS Touch Battery Runtime | Up to 8 Hours |
| User Interface | Color Touchscreen with Swipe Navigation |
| Pressure & Vacuum Supply | Integrated |
| Overpressure Capability | Up to 1.25 × Full Scale with Negligible Calibration Change |
| Calibration Stability | Better Than 0.05 mbar for Ps & Pt Over 15 Months |
| Standard Calibration Interval | 15 Months |
| Extended Calibration Option | 18 Months |
| Upgrade Capability | Upgradeable to ADTS 554F |
| Construction | Rugged & Portable |
| Typical Applications | Pitot-Static Testing, AOA Simulation, Leak Testing, RVSM Validation & Avionics Maintenance |
Standard Accessories (Included)
- ADTS 553F Pitot Static Tester
- ADTS Touch Hand Terminal
- AC Power Lead, approx. 1.8 m (6 ft)
- ADTS Touch Remote Cable, approx. 5 m (16 ft)
- ADTS Touch Remote Cable, approx. 18 m (59 ft)
- ADTS Touch Rechargeable Battery Pack
- ADTS Touch AC Power Supply Unit
- Ps & Pt Color Label Pack
- Multi-Language Installation Manual
- Accessories Bag
- Operator Manual Installed on ADTS Touch
- Calibration Certificate Traceable to International Standards
These items are listed by the manufacturer as the standard specifications/supplied equipment for the ADTS 550F series. Aircraft-specific hoses, pitot/static adaptors, extended-range wireless accessories and other connection kits are optional unless included in the exact ordered configuration.
Official manufacturer information: Druck ADTS 553F product page and Druck ADTS 550F Series datasheet
