Description

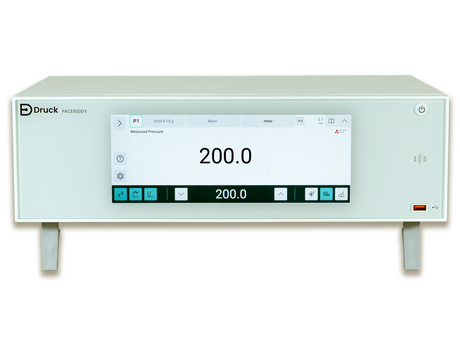

The Druck PACE6000E is a next-generation dual-channel modular precision pressure controller designed for calibration laboratories, production testing, research, aerospace and automated test applications. As the successor to the PACE6000, it combines advanced digital pressure control with interchangeable control modules, delivering exceptional accuracy, stability and speed while maintaining full compatibility with existing PACE control modules and SCPI command sets.
The PACE6000E supports single-channel, dual-channel and auto-ranging configurations using one or two interchangeable control modules. It provides precise pressure control up to 210 bar (3000 psi / 21 MPa) with control stability as low as 0.001% FS and can achieve a stable pressure set point in as little as 1.5 seconds. Advanced piezo-resistive and TERPS® pressure sensor technology ensures outstanding long-term stability and measurement performance.
A high-resolution color touchscreen with an intuitive icon-driven interface simplifies operation, while USB, Ethernet and RS232 are provided as standard, with optional IEEE-488 (GPIB) support. Optional functions including leak test, burst test, switch test, analogue output, aeronautical mode and barometric reference make the PACE6000E suitable for a wide range of precision pressure calibration and automated testing applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PACE |
| Model | PACE6000E |
| Product Type | Dual-Channel Modular Precision Pressure Controller |
| Configuration | Dual-Channel Pressure Controller |
| Pressure Range | Up to 210 bar (3000 psi / 21 MPa), Module Dependent |
| Pressure Types | Gauge, Absolute & Differential (Module Dependent) |
| Control Module Configuration | Single, Dual or Auto-Range |
| Number of Control Modules | Up to 2 Interchangeable Modules |
| Control Technology | Full Digital Pressure Control |
| Sensor Technology | Piezo-Resistive & TERPS® Pressure Sensors |
| Pressure Control Stability | Up to ±0.001% FS |
| Stable Set Point Time | As Fast as 1.5 Seconds |
| Measurement Accuracy | Up to ±0.0004% Reading + ±0.0027% FS (Configuration Dependent) |
| Long-Term Stability | From ±0.001% FS |
| Display | High-Resolution Color Touchscreen |
| User Interface | Icon-Based Task Menu with Context Help |
| Pressure Units | 28 Standard + 4 User-Defined Units |
| Barometric Reference | Optional |
| Aeronautical Mode | Optional |
| Switch Test | Optional |
| Leak Test | Optional |
| Burst Test | Optional |
| Test Program | Optional |
| Analog Output | Optional |
| Voltage-Free Contacts | Optional |
| Communication Interfaces | USB, Ethernet & RS232 (Standard) |
| IEEE-488 (GPIB) | Optional |
| Communication Protocols | SCPI-99, USBTMC, LXI 1.6 (VXI-11 & HiSLIP) |
| Software Compatibility | NI IVI-C & LabVIEW Drivers |
| Mounting Options | Bench Top or 19-inch Rack Mount |
| Backward Compatibility | Compatible with Existing PACE Control Modules & SCPI Commands |
| Typical Applications | Calibration Laboratories, Aerospace Testing, Automated Test Equipment, Production & Research |
Standard Accessories (Included)
- Druck PACE6000E Controller Chassis
- AC Power Cord
- Factory Calibration Certificate
- Quick Start Guide
- User Documentation
Optional Accessories
- PACE CM Interchangeable Control Modules
- Barometric Reference Module
- IEEE-488 (GPIB) Interface
- Rack Mount Kit
- Analog Output Option
- Switch Test Option
- Leak Test Option
- Burst Test Option
- Test Program Option
- Voltage-Free Contact Option
- Pressure Connection Adapter Kits
The standard package includes the PACE6000E controller chassis, AC power cord, factory calibration certificate and user documentation. Interchangeable control modules and optional application features are available separately according to the required pressure range and application.
