Description

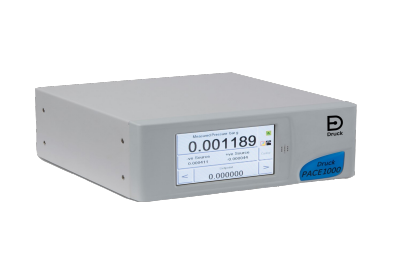

The Druck PACE1000 is a high-precision pressure indicator designed for calibration laboratories, test benches, production facilities and industrial pressure monitoring applications. Combining advanced piezo-resistive and TERPS® resonant pressure sensor technology with a high-resolution color touchscreen, the PACE1000 delivers exceptional measurement accuracy, long-term stability and ease of operation. It is suitable for bench-top, rack-mounted and panel-mounted installations.
The PACE1000 supports single or multiple pressure range configurations and can display up to three pressure measurements simultaneously from a combination of internal sensors and external IDOS universal pressure modules. Users can choose between numeric and graphical displays, perform differential pressure calculations (P1–P2), and utilize built-in data logging with on-screen replay for enhanced analysis and documentation.
With standard USB, Ethernet, RS232 and IEEE-488 connectivity, the PACE1000 integrates easily into automated calibration systems. Optional features such as barometric reference, leak testing, switch testing, analogue output and aeronautical functions make it a versatile solution for precision pressure measurement and calibration.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PACE |
| Model | PACE1000 |
| Product Type | Precision Pressure Indicator |
| Pressure Range | Up to 1000 bar (14,500 psi / 100 MPa), Model Dependent |
| Pressure Types | Gauge, Absolute, Differential & Barometric (Optional) |
| Sensor Technology | Piezo-Resistive & TERPS® Resonant Pressure Sensors |
| Measurement Accuracy | Up to ±0.001% Full Scale |
| Long-Term Stability | Up to ±0.001% Full Scale |
| Internal Sensors | Up to 3 |
| External Sensor Support | Up to 2 IDOS Universal Pressure Modules |
| Maximum Displayed Pressures | 3 Simultaneously |
| Display | 4.3-inch High-Resolution Color Touchscreen |
| Display Modes | Numeric & Graphical |
| Differential Display | P1 – P2 |
| Pressure Units | 28 Standard + 4 User-Defined Units |
| Data Logging | Standard with On-Screen Replay |
| Min / Max / Average Display | Yes |
| Communication Interfaces | USB, Ethernet, RS232 & IEEE-488 |
| Communication Protocols | SCPI & Legacy DPI Emulation |
| Negative Gauge Calibration | Standard |
| Barometric Reference | Optional |
| Airfield Functions | QFE, QFF & QNH (with Barometric Option) |
| Switch Test | Optional |
| Analog Output | Optional |
| Voltage-Free Contact | Optional |
| Leak Test | Optional |
| Aeronautical Option | Available |
| Mounting Options | Bench Top, Panel Mount & Rack Mount |
| Typical Applications | Calibration Laboratories, Pressure Testing, Industrial Monitoring & Test Benches |
Standard Accessories (Included)
- Druck PACE1000 Precision Pressure Indicator
- External Power Supply
- AC Power Cord
- Factory Calibration Certificate
- Quick Start Guide
- User Documentation
Optional Accessories
- IDOS Universal Pressure Modules
- Barometric Reference Option
- Rack Mount Kit
- Panel Mount Kit
- Analog Output / Switch Test Option
- Voltage-Free Contact Option
- Leak Test Option
- Pressure Connection Adapters
The standard package includes the PACE1000 instrument, power supply, power cord, calibration certificate and documentation. Optional accessories and software features are available depending on the selected configuration.
