Description

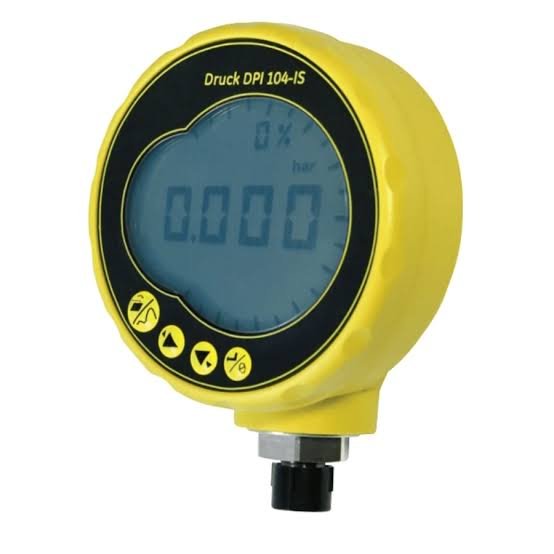

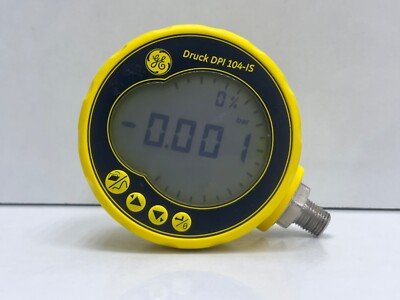

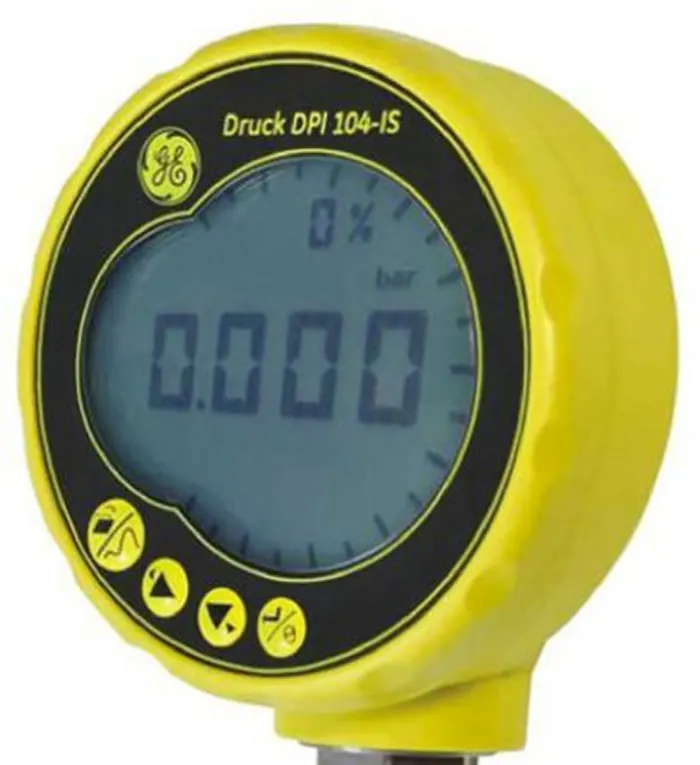

The Druck DPI104-IS is an intrinsically safe digital test gauge designed for accurate pressure measurement in hazardous (Ex) environments. It combines advanced microprocessor-controlled electronics with proven silicon sensor technology to provide high accuracy, excellent reliability and easy operation in a compact, rugged instrument. Certified for use in ATEX and IECEx hazardous areas, it is ideal for pressure testing, calibration, maintenance and process monitoring in oil & gas, petrochemical, chemical and industrial applications.
The DPI104-IS offers 0.05% full-scale accuracy, pressure ranges up to 1400 bar (20,000 psi) and eleven selectable pressure units. It features a large five-digit display with an analog bar graph, minimum/maximum pressure recording, tare function, pressure switch testing, programmable alarm output and optional 0–5 V analog output. Its rotating display and pressure connection allow optimum viewing from virtually any installation angle.
Designed for demanding field environments, the gauge is powered by a long-life 9 V battery and is available with stainless steel or Inconel pressure cavities for compatibility with a wide range of pressure media. It can be used as a standalone digital pressure gauge or as part of Druck pressure test kits with PV210 or PV211 hand pumps.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI104-IS |
| Product Type | Intrinsically Safe Digital Test Gauge |
| Safety Certification | ATEX & IECEx Intrinsically Safe |
| Pressure Range | Up to 1400 bar (20,000 psi), Model Dependent |
| Pressure Types | Gauge, Absolute & Sealed Gauge (Model Dependent) |
| Accuracy | ±0.05% Full Scale |
| Sensor Technology | Advanced Silicon Pressure Sensor |
| Display | 5-Digit LCD with Analog Bar Graph |
| Display Update Rate | 2 Readings per Second |
| Pressure Units | 11 Selectable Units |
| Resolution | Up to 5 Digits |
| Min / Max Recording | Yes |
| Tare Function | Yes |
| Pressure Switch Test | Yes (Maximum Switch Impedance 200 Ω) |
| Analog Output | 0–5 V (Optional) |
| Alarm Output | Open Drain FET, 24 VDC Max, 250 mA Max |
| Display Rotation | 320° Rotating Housing with Adjustable Faceplate |
| Pressure Connection | G1/4 Male, 1/4 NPT Male or 9/16-18 UNF (Model Dependent) |
| Wetted Materials | Stainless Steel or Inconel (Model Dependent) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Battery Type | 9 V Alkaline (MN1604) |
| Battery Life | Approximately 1 Year (Typical Use) |
| Protection Rating | IP65 |
| Dimensions | 95 mm Diameter × 55 mm Depth |
| Weight | Approx. 350 g |
| Typical Applications | Hazardous Area Pressure Measurement, Calibration, Process Monitoring & Pressure Testing |
Standard Accessories (Included)
- Druck DPI104-IS Digital Test Gauge
- 9 V Alkaline Battery (MN1604)
- Factory Calibration Certificate
- User Guide
- Safety Instructions
Optional Accessories
- PV210 Low Pressure Hand Pump Kit
- PV211 Pneumatic Hand Pump Kit
- Pressure Adapter Kits (BSP, NPT & Metric)
- Protective Carrying Case
- RS232 Communication Interface
- Monitoring & Control Software
- 0–5 V Analog Output Option
The standard package includes the DPI104-IS digital test gauge, 9 V battery, factory calibration certificate, user guide and safety documentation. Pump kits, communication accessories and pressure adapters are available separately
Ordering Info
- DPI104 IS Range:-1 to 0.7 Bar ( 10Psi) Resolution: 0.01mbar
- DPI104 IS Range:-1 to 2 Bar ( 30Psi) Resolution: 0.1mbar
- DPI104 IS Range:-1 to 7 Bar ( 100Psi) Resolution: 0.1mbar
- DPI104 IS Range:-1 to 20 Bar ( 300Psi) Resolution: 1mbar
- DPI104 IS Range:-1 to 70 Bar ( 1000Psi) Resolution: 1mbar
- DPI104 IS Range:-1 to 200 Bar ( 3000Psi) Resolution: 10mbar
- DPI104 IS Range:-1 to 350 Bar ( 5000Psi) Resolution: 10mbar
- DPI104 IS Range:-1 to 700 Bar ( 10000Psi) Resolution: 10mbar
- DPI104 IS Range:-1 to 1000 Bar ( 15000Psi) Resolution: 100mbar
- DPI104 IS Range:-1 to 1400 Bar ( 20000Psi)
