Description

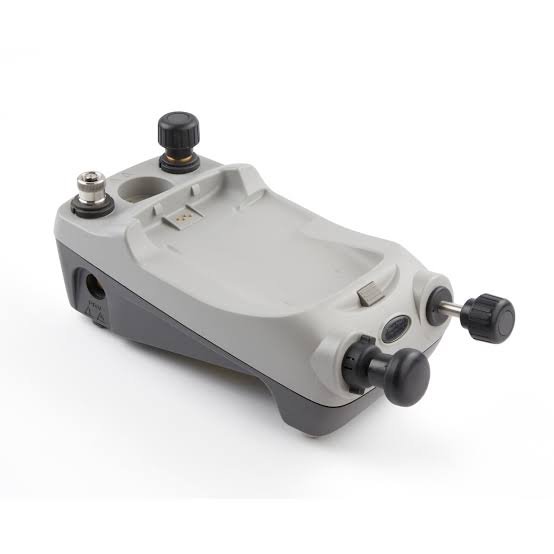

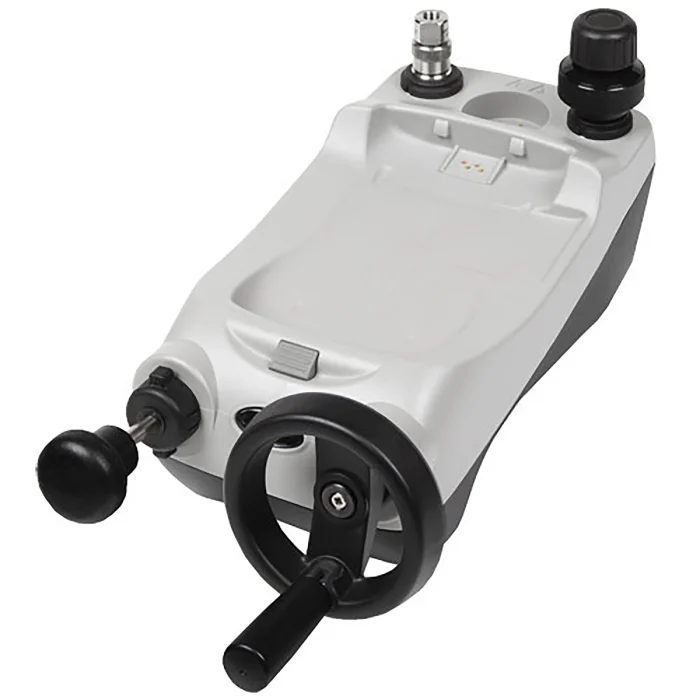

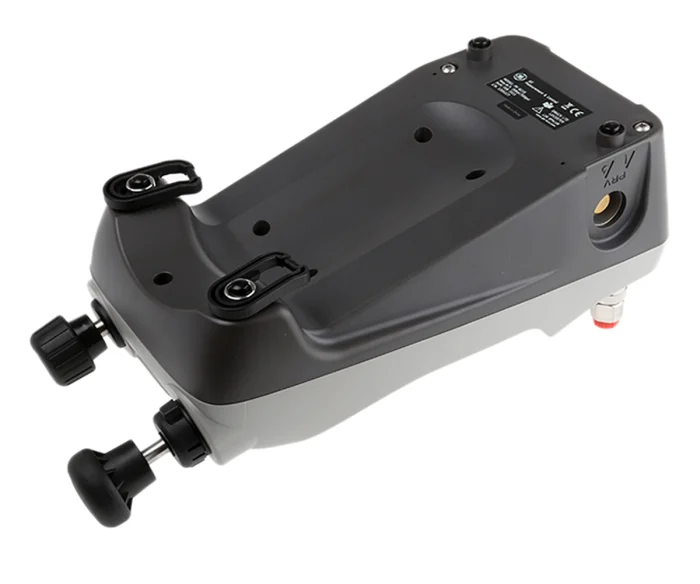

The Druck PV621 is a portable pneumatic pressure generating base station designed for fast, accurate and efficient pressure generation for calibration, testing and maintenance applications. As part of the Druck Genii Advanced Modular Calibration System, it can be used as a standalone pressure generator or combined with the DPI620G multifunction calibrator and PM620 series pressure modules to create a complete pressure calibration system. It replaces conventional hand pumps by providing faster pressure generation with significantly less operator effort.
The PV621 generates pressures from 95% vacuum to 20 bar (300 psi) using a conventional hand pump, integrated volume adjuster and pressure/vacuum selector valve. Its innovative design requires approximately half the pumping effort of traditional hand pumps while providing precise fine pressure adjustment and stable pressure generation for calibrating pressure gauges, transmitters, switches and sensors. It can also be used as a bench-top pressure comparator.
Designed for field and laboratory use, the PV621 features tool-free quick-fit pressure connections, interchangeable pressure adapters and a rugged portable construction. A hazardous-area PV621-IS version is also available for intrinsically safe applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | PV621 |
| Product Type | Pneumatic Pressure Generating Base Station |
| Pressure Generation Type | Pneumatic |
| Pressure Range | 95% Vacuum to 20 bar (300 psi) |
| Maximum Pressure | 20 bar (300 psi) |
| Vacuum Capability | 95% Vacuum |
| Pressure Media | Non-Corrosive Gases |
| Pump Design | Manual Hand Pump with Volume Adjuster |
| Pressure/Vacuum Selector | Integrated |
| Fine Pressure Control | Precision Volume Adjuster |
| Standalone Operation | Yes |
| Comparator Function | Bench-Top Comparator Compatible |
| Compatible Calibrator | Druck DPI620G Series |
| Compatible Pressure Modules | PM620 & PM620T Series |
| Pressure Connections | Tool-Free Quick-Fit System |
| Standard Pressure Adapters | G1/8 Female & 1/8 NPT Female |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Pressure Safety | Pressure Equipment Directive Class SEP |
| Approvals | CE & UKCA |
| Hazardous Area Version | PV621-IS (ATEX & IECEx) |
| Dimensions | 450 × 280 × 235 mm |
| Weight | Approx. 2.65 kg |
| Typical Applications | Pressure Calibration, Instrument Testing, Bench Comparator & Field Service |
Standard Accessories (Included)
- Druck PV621 Pneumatic Pressure Generating Base Station
- G1/8 Female Pressure Adapters (2)
- 1/8 NPT Female Pressure Adapters (2)
- Carry Strap
- Quick Reference Guide
- User Manual (Digital/CD)
Optional Accessories
- Comparator Adapter (IO620-COMP)
- Pressure Station Carrying Case (IO620-CASE-3)
- BSP, NPT & Metric Adapter Kits
- Pressure Relief Valve Kits
- Blanking Plug (IO620-BLANK)
- PM620 / PM620T Pressure Modules
- Druck DPI620G Multifunction Calibrator
The standard package includes the PV621 base station, G1/8 and 1/8 NPT pressure adapters, carry strap, quick reference guide and user documentation. Comparator accessories, pressure modules, adapter kits and the DPI620G calibrator are available separately.
