Description

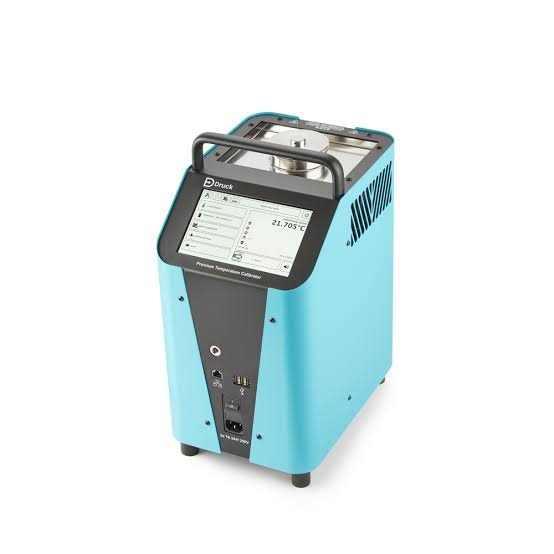

The Druck PTC165i is a premium multifunction temperature calibrator with an integrated measuring module, designed for fast, accurate and automated temperature calibration across a wide range of industrial applications. It combines four calibration methods in a single instrument—dry block, calibration bath, infrared thermometer calibration and surface sensor calibration—providing exceptional flexibility for temperature verification and testing.

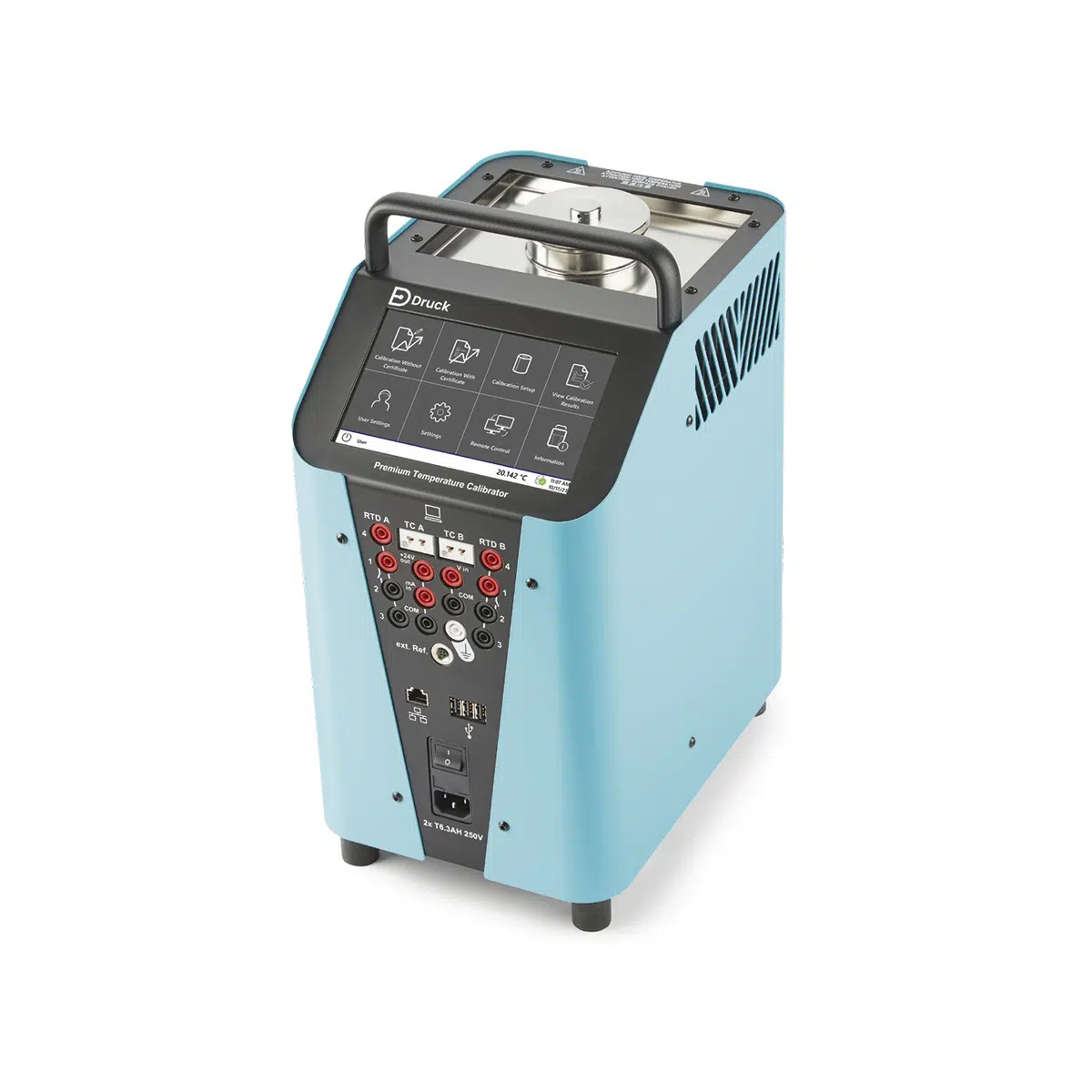

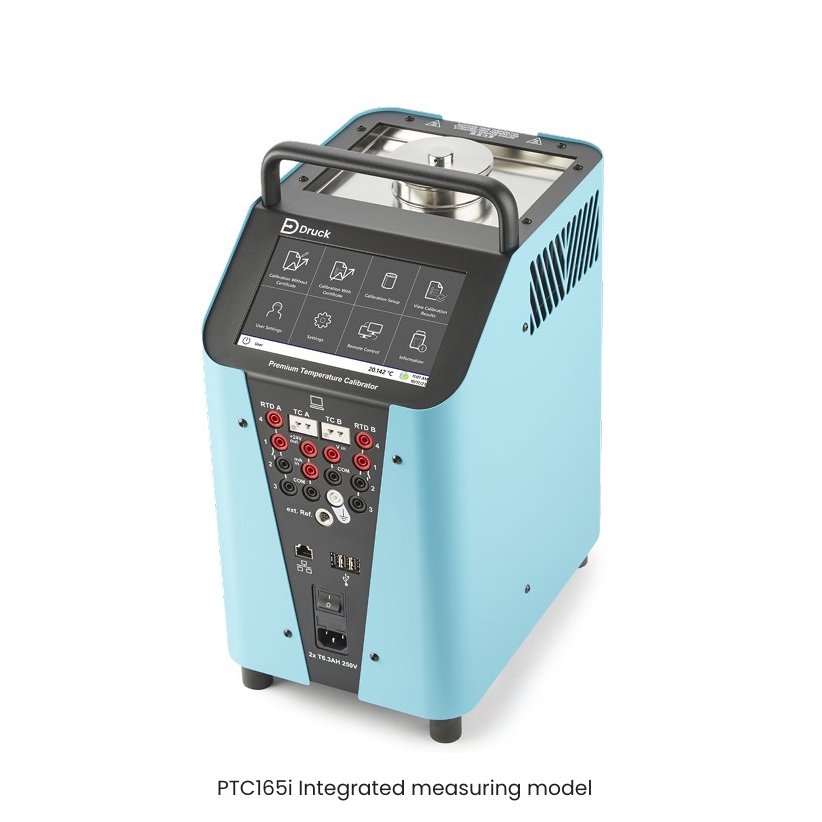

The integrated measuring module enables direct measurement of RTDs, thermocouples, resistance, current, voltage and switch signals without requiring an external measuring instrument. Its large 7-inch color touchscreen, intuitive user interface and patented control technology deliver rapid stabilization, reducing calibration time by up to 50%.
The PTC165i automatically generates calibration certificates and supports device-under-test (DUT) management with optional barcode scanner and camera accessories for fully automated calibration workflows. It is ideal for calibration laboratories, pharmaceutical manufacturing, food processing, power generation and industrial process applications
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PTC165 |
| Model | PTC165i |
| Product Type | Premium Temperature Calibrator with Integrated Measuring Module |
| Temperature Range | -35°C to 165°C (-31°F to 329°F) |
| Calibration Functions | Dry Block, Calibration Bath, Infrared & Surface Calibration |
| Integrated Measuring Module | Yes |
| RTD Measurement | 2-, 3- & 4-Wire Supported |
| Thermocouple Measurement | Supported |
| Resistance Measurement | Pt100: 0–400 Ω, Pt1000: 0–4000 Ω |
| Current Measurement | 0–24 mA |
| Voltage Measurement | 0–12 VDC |
| Switch Test | Supported |
| Transmitter Supply | 24 VDC, Max. 24 mA |
| Temperature Resolution | 0.001 / 0.01 / 0.1°C (Selectable) |
| Temperature Units | °C, °F, K |
| Reference Sensor | Internal or External |
| Display | 7-inch Color Touchscreen |
| User Interface | Intuitive Touchscreen Menu |
| Calibration Certificate | Automatic Generation |
| Device Management | Built-in DUT Management |
| Barcode Scanner | Optional (IOPTC-BAR-1) |
| Camera Support | Optional (IOPTC-CAM-2) |
| Interfaces | Ethernet, 3 × USB |
| Communication | OPC UA, HTTP & Serial |
| Power Supply | 100–115 VAC / 230 VAC |
| Applications | RTD, Thermocouple, Infrared & Surface Temperature Calibration |
Standard Accessories (Included)
- Druck PTC165i Temperature Calibrator
- Standard Calibration Insert
- Power Cable
- Calibration Certificate
- User Manual
- Safety Guide
Optional Accessories
- External Reference Temperature Sensor
- Barcode Scanner (IOPTC-BAR-1)
- Automatic Calibration Camera (IOPTC-CAM-2)
- Camera Holder (IOPTC-CAM-1)
- Additional Calibration Inserts
The standard package includes the temperature calibrator, calibration insert, power cable, calibration certificate and documentation. Barcode scanner, camera system, external reference sensors and additional inserts are available as optional accessories.
