Description

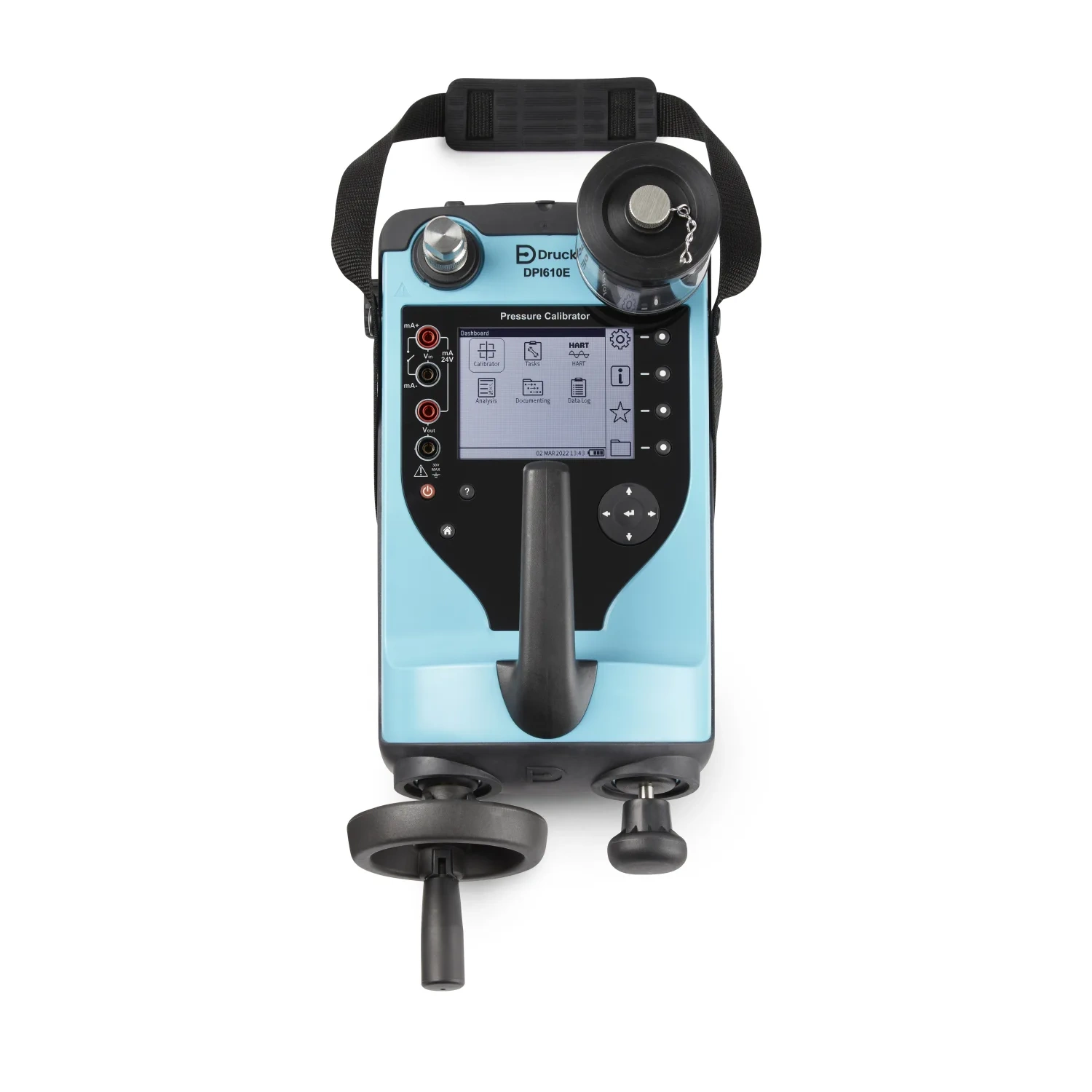

The Druck DPI610E-HC is a handheld hydraulic pressure calibrator designed for high-accuracy pressure calibration in safe-area industrial environments. As the latest generation of the renowned DPI600 Series, it combines hydraulic pressure generation, precision pressure measurement, electrical measurement and sourcing, HART® communication, loop power and advanced data logging into a single rugged portable instrument. It is ideal for calibrating pressure transmitters, gauges, switches and process instruments in field and laboratory applications.
The DPI610E-HC features an integrated hydraulic pump capable of generating pressures from 70 bar to 1000 bar (1,000 to 15,000 psi), depending on the selected model. Druck’s advanced pressure sensor technology delivers total one-year uncertainty down to ±0.025% FS, while the intuitive touchscreen and keypad interface simplify calibration procedures. Built-in HART® communication, electrical measurement/source functions, loop power and calibration record management eliminate the need for multiple test instruments.
Designed for demanding field use, the DPI610E-HC includes quick-fit pressure adapters to minimize leaks, a rechargeable lithium-ion battery for extended operation, USB connectivity and optional Bluetooth® (country dependent). It also supports optional PM700E remote pressure sensors and RTD interface modules, providing a comprehensive pressure calibration solution.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI610E-HC |
| Product Type | Hydraulic Pressure Calibrator |
| Application | Safe Area Use |
| Pressure Generation | Integrated Hydraulic Hand Pump |
| Pressure Range | 70 to 1000 bar (1,000 to 15,000 psi), Model Dependent |
| Pressure Types | Gauge or Absolute (Model Dependent) |
| Pressure Accuracy | Up to ±0.025% FS (1-Year Total Uncertainty) |
| Pressure Sensor Technology | Advanced Digital Pressure Sensor |
| Hydraulic Media | Compatible Hydraulic Fluids |
| Electrical Measurement | mA, mV, V, Resistance, Frequency & Switch Test |
| Electrical Source | Current & Voltage Source |
| Loop Power | 24 V DC |
| HART® Communication | Standard |
| Data Logging | Yes |
| Calibration Records | Built-In with Due-Date Countdown |
| Display | High-Contrast Color Touchscreen with Keypad |
| Connectivity | Micro USB |
| Bluetooth® | Optional (Country Dependent) |
| Remote Sensor Compatibility | PM700E Pressure Sensor & RTD Interface |
| Memory | Internal Calibration & Logging Storage |
| Battery Type | Rechargeable Lithium-Ion |
| Battery Charger | AC Mains Charger |
| Operating Temperature | -10°C to +50°C |
| Protection Rating | IP54 |
| Typical Applications | Pressure Transmitters, Gauges, Switches, Sensors & Process Instrument Calibration |
Standard Accessories (Included)
- Druck DPI610E-HC Hydraulic Pressure Calibrator
- Rechargeable Lithium-Ion Battery
- AC Mains Battery Charger
- Integrated Carry Strap
- Test Leads
- G1/8 Female Pressure Adapter
- 1/8 NPT Female Pressure Adapter
- 100 ml Hydraulic Reservoir
- Factory Calibration Certificate
- Quick Start Guide
Optional Accessories
- 1 m Hydraulic Pressure Hose
- Bluetooth® Option
- PM700E Remote Pressure Sensor
- RTD Interface Module
- 4Sight2 Calibration Software
- Pressure Adapter Kits
- Carrying Case
The standard package includes the hydraulic pressure calibrator, rechargeable battery, charger, carry strap, test leads, G1/8 and 1/8 NPT pressure adapters, 100 ml hydraulic reservoir, factory calibration certificate and quick start guide. Bluetooth®, remote sensors, RTD interface modules and additional pressure accessories are available as optional items.
Note: Different range options are available on request.
Pressure Range:
- 16G or A – 70 bar/1000 psi/7 MPa
- 165G or A – 100 bar/1500 psi/10 MPa
- 17G or A – 135 bar/2000 psi/13.5 MPa
- 18G or A – 200 bar/3000 psi/20 MPa
- 20A- 350 bar/5000 psi/35 MPa
- 22A- 700 bar/10000 psi/70 MPa
- 23A- 1000 bar/15000 psi/100 MPa
