Description
The Druck PV624 is a portable hybrid pressure control station that combines manual pressure generation with fully automatic pressure generation and control in a single compact unit. Designed as part of the Druck Genii Advanced Modular Calibration System, it enables fast, precise and stable pressure control for field and laboratory calibration applications.
Using intelligent hybrid control technology, the PV624 automatically switches between manual pumping for rapid pressure changes and automatic electronic pressure control to quickly achieve and accurately maintain the required pressure set point. It supports pressure generation from -0.9 barg (-13 psig) to 20 barg (300 psig) and is capable of controlling large test volumes while maintaining long battery life.

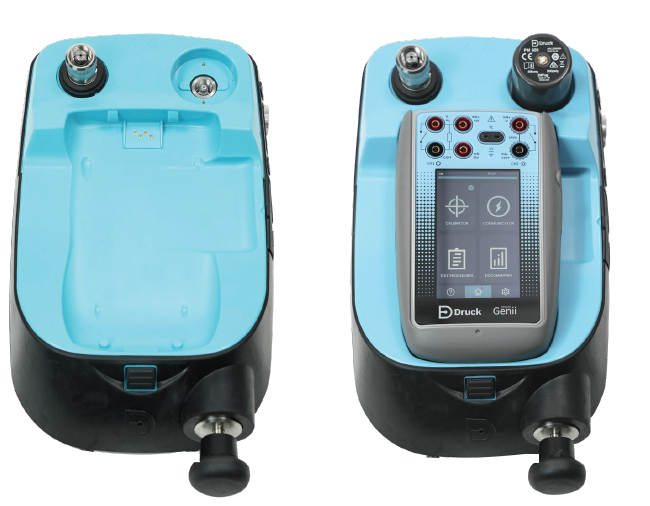

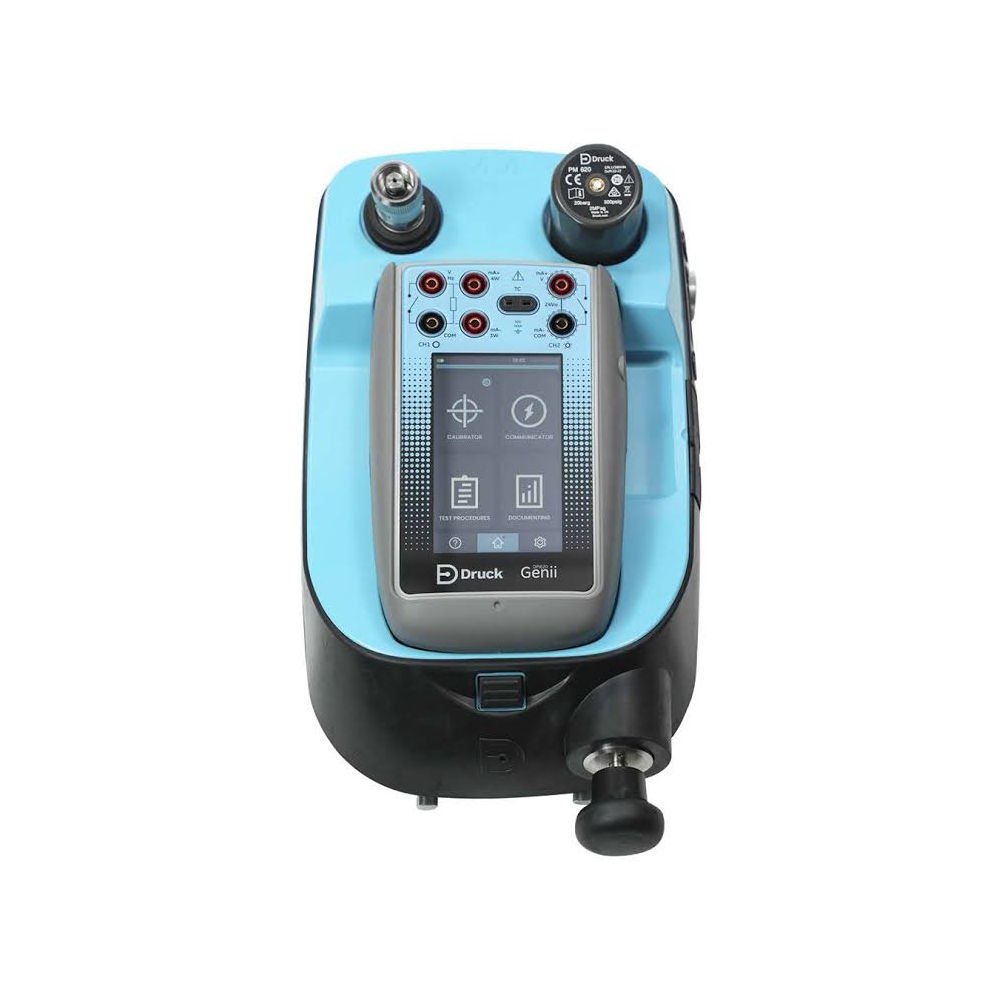

The PV624 integrates seamlessly with the Druck DPI620G multifunction calibrator and interchangeable PM620/PM620T pressure modules to create a fully portable automatic pressure calibration system. It features tool-free quick-fit pressure connections, an internal barometer for pseudo pressure measurements, rechargeable battery operation and optional Bluetooth® connectivity for wireless communication with compatible DPI620G calibrators.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | PV624 |
| Product Type | Portable Hybrid Pressure Control Station |
| System Type | Automatic & Hybrid Pressure Controller |
| Pressure Range | -0.9 to 20 barg (-13 to 300 psig) |
| Pressure Generation | Manual & Automatic Hybrid Control |
| Pressure Control | Automatic Closed-Loop Control |
| Pressure Stability | Automatic Set Point Maintenance |
| Internal Barometer | Yes |
| Pressure Reference | Gauge, Absolute & Pseudo Pressure (with Compatible Modules) |
| Compatible Calibrator | Druck DPI620G Series |
| Compatible Pressure Modules | PM620, PM620T & PM620LP Series |
| Connectivity | Standard Electrical Connection |
| Bluetooth® | Optional (B1 Model) |
| Pressure Connection | Tool-Free Quick-Fit Connection |
| Standard Pressure Adapters | G1/8 Female & 1/8 NPT Female |
| Battery Type | Rechargeable Lithium-Ion Battery Pack |
| Charging | Internal or External Optional Charger |
| Power Supply | AC Power Adapter |
| Dirt & Moisture Protection | Integrated Dirt/Moisture Trap |
| Construction | Rugged Portable Design |
| Typical Applications | Pressure Calibration, Process Instrument Testing & Field Calibration |
Standard Accessories (Included)
- Druck PV624 Hybrid Pressure Control Station
- Rechargeable Battery Pack
- AC Power Supply
- Shoulder/Carry Strap
- G1/8 Female Pressure Adapter
- 1/8 NPT Female Pressure Adapter
- Dirt & Moisture Trap
- Quick Start & Safety Guide
Optional Accessories
- Bluetooth® Connectivity (B1 Model)
- Pressure Station Carrying Case (IO620-CASE-3)
- Spare Rechargeable Battery Pack
- External Battery Charger
- Pneumatic Hose Kits
- BSP, NPT & Metric Adapter Kits
- Low-Pressure Connector Kit
- External Low-Pressure Pump
- PM620 / PM620T / PM620LP Pressure Modules
- DPI620G Multifunction Calibrator
The standard package includes the PV624 base station, rechargeable battery, AC power supply, shoulder strap, G1/8 female adapter, 1/8 NPT female adapter, dirt/moisture trap and quick start/safety guide. Optional accessories and pressure modules are available separately.
