Description

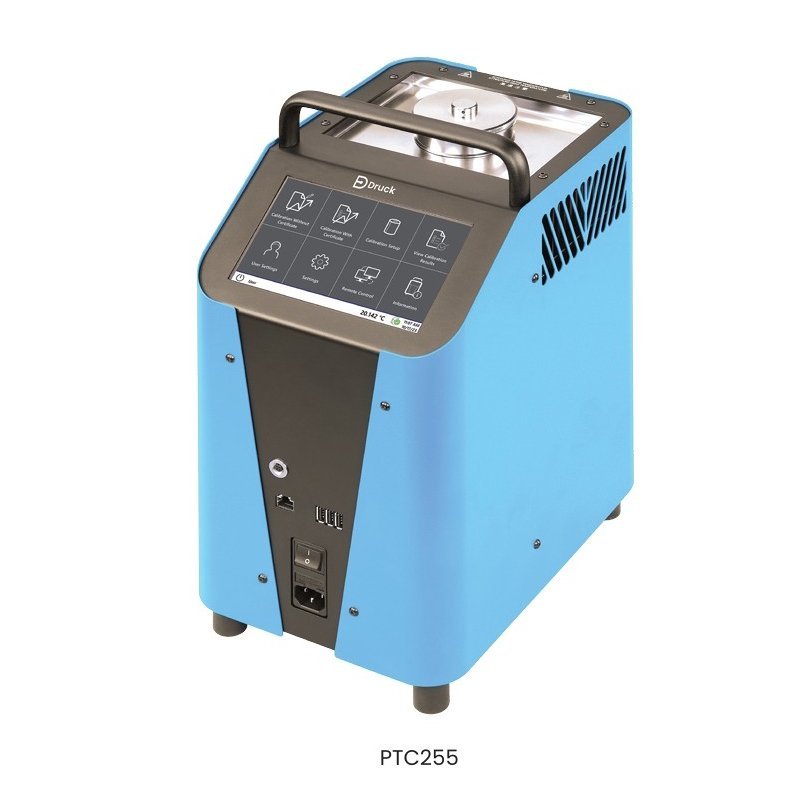

The Druck PTC255 is a premium multifunction temperature calibrator designed for fast, accurate and reliable temperature calibration in laboratory and industrial environments. It combines four calibration methods in a single instrument—dry block, calibration bath, infrared thermometer calibration and surface sensor calibration—providing exceptional flexibility for a wide range of temperature calibration applications.
Featuring patented control technology, the PTC255 delivers some of the fastest stabilization times available, reducing calibration time by up to 50%. Its large 7-inch color touchscreen offers an intuitive interface for configuring tests, monitoring reference and target temperatures, and automatically generating calibration certificates.
The PTC255 supports simultaneous calibration of multiple sensors with its large calibration insert and is ideal for calibrating RTDs, thermocouples, infrared thermometers and surface temperature sensors. It also supports optional barcode scanner and camera accessories for streamlined device management and automated calibration workflows. The standard PTC255 is a temperature calibrator only; users requiring integrated electrical measurement should select the PTC255i model.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PTC255 |
| Model | PTC255 |
| Product Type | Premium Multifunction Temperature Calibrator |
| Temperature Range | Ambient (RT) to 255°C (491°F) |
| Calibration Functions | Dry Block, Calibration Bath, Infrared & Surface Calibration |
| Measuring Module | External Measuring Instrument Required |
| Heating Time | 20°C to 255°C in Approx. 17 Minutes |
| Cooling Time | 225°C to 30°C in Approx. 50 Minutes |
| Temperature Resolution | 0.001 / 0.01 / 0.1°C (Selectable) |
| Temperature Units | °C, °F, K |
| Reference Sensor | Internal or Optional External |
| Display | 7-inch Color Touchscreen |
| User Interface | Intuitive Touchscreen Navigation |
| Calibration Certificate | Automatic Generation |
| Device Management | Built-in |
| Barcode Scanner | Optional (IOPTC-BAR-1) |
| Camera Support | Optional (IOPTC-CAM-2 with IOPTC-CAM-1 Holder) |
| Communication Interfaces | Ethernet, 3 × USB |
| Communication Protocols | OPC UA, HTTP & Serial |
| Power Supply | 100–115 VAC / 230 VAC |
| Power Consumption | Approx. 1000 W |
| Dimensions (W × H × D) | 210 × 330 × 300 mm |
| Weight | Approx. 8.5 kg |
| Typical Applications | RTD, Thermocouple, Infrared & Surface Temperature Sensor Calibration |
Standard Accessories (Included)
- Druck PTC255 Temperature Calibrator
- Standard Calibration Insert
- Power Cable
- Calibration Certificate
- User Manual
- Safety Guide
Optional Accessories
- External Reference Temperature Sensor
- Calibration Bath Insert
- Infrared Calibration Insert (IOPTC-INF-1)
- Barcode Scanner (IOPTC-BAR-1)
- Camera System (IOPTC-CAM-1 & IOPTC-CAM-2)
- Additional Calibration Inserts
The standard package includes the calibrator, standard insert, power cable, calibration certificate and documentation. Optional accessories are available separately depending on the application.
