Description

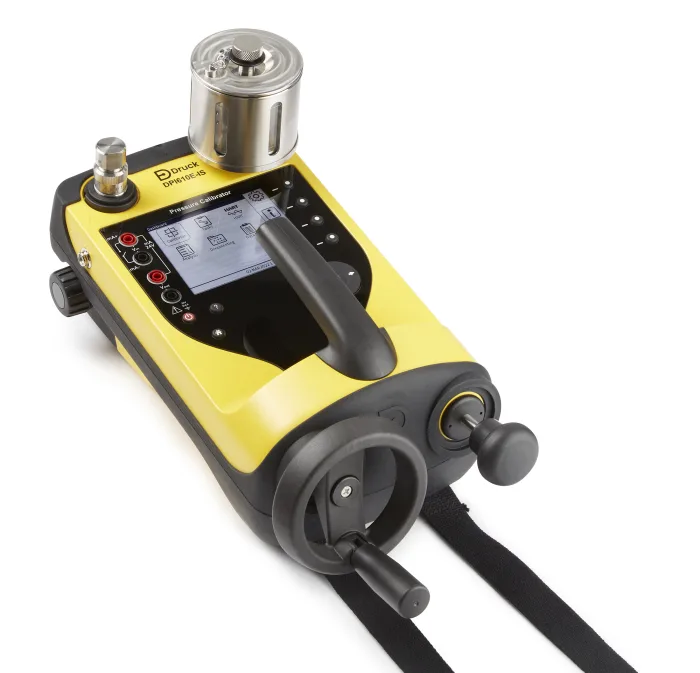

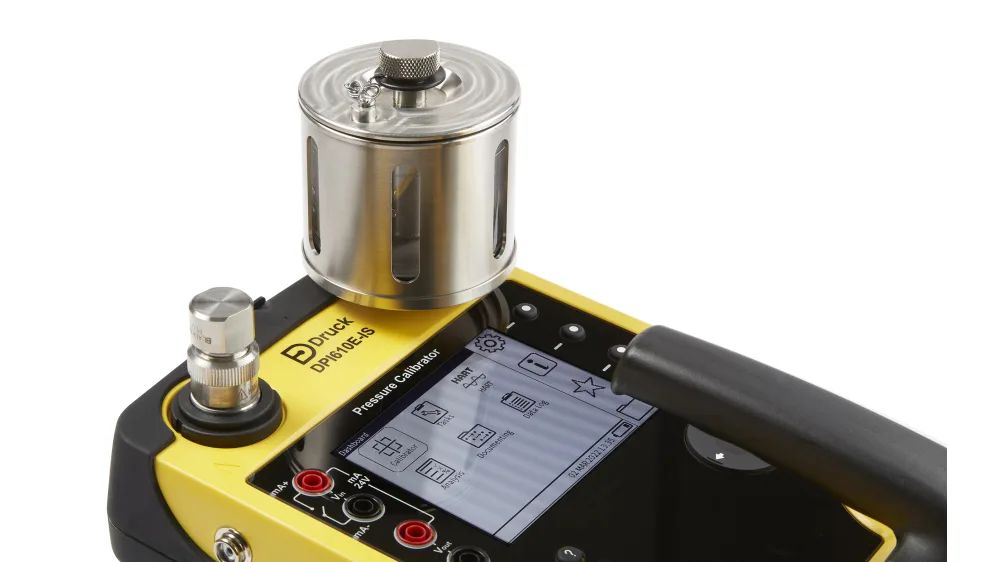

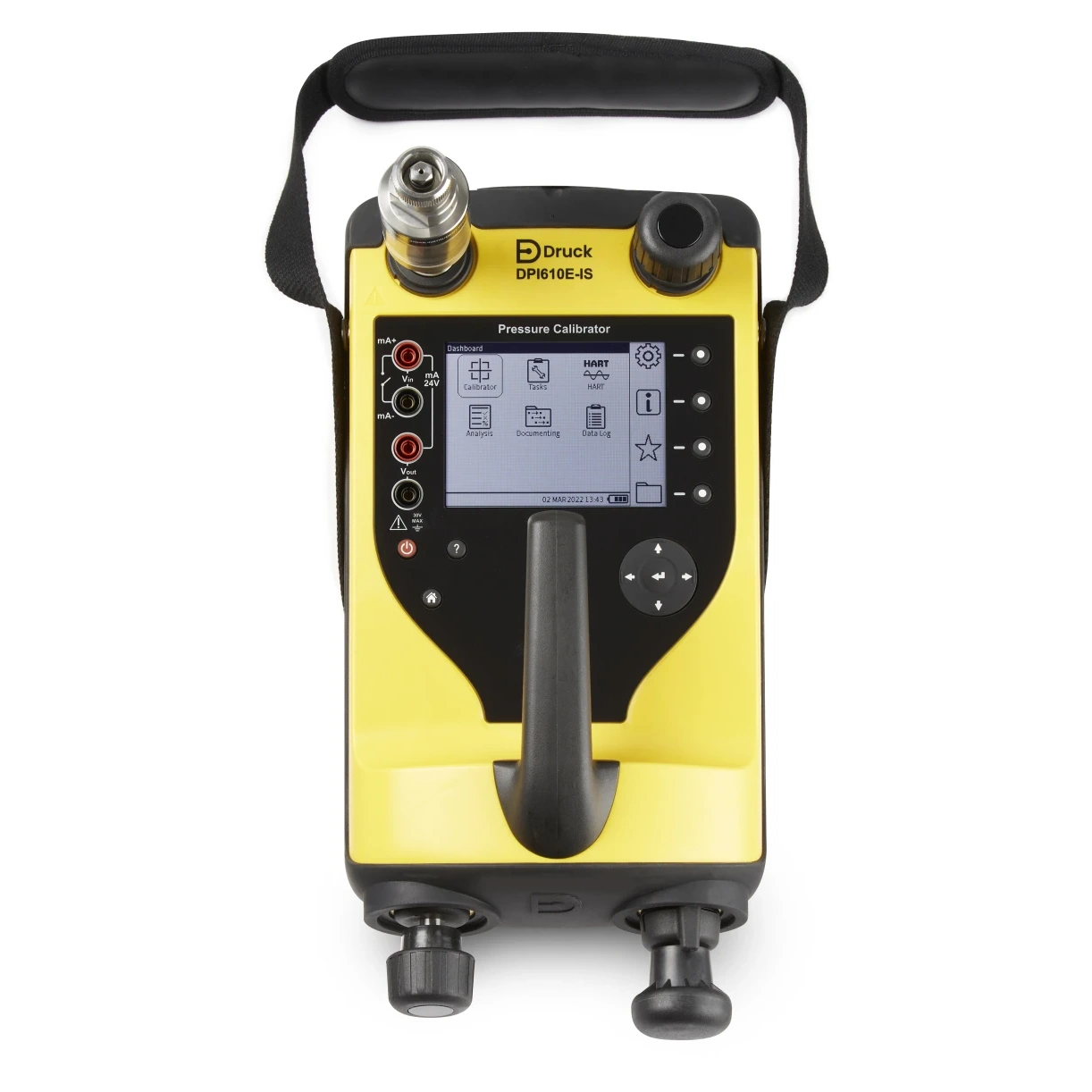

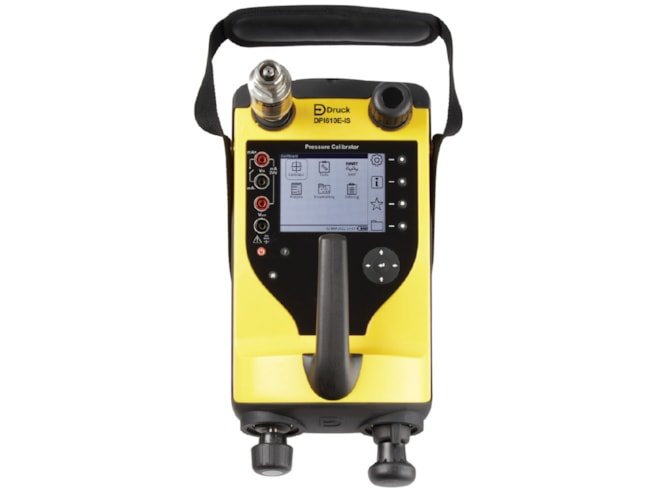

The Druck DPI610E-SPC is an intrinsically safe handheld pneumatic pressure calibrator designed for pressure calibration and maintenance in hazardous areas. As part of the sixth-generation DPI610E family, it combines pneumatic pressure generation, precision pressure measurement, electrical measurement and sourcing, HART® communication, loop power and advanced data logging into a single portable instrument. It is certified for use in hazardous (Ex) environments, making it ideal for oil & gas, petrochemical, chemical processing and other industrial field applications.
The DPI610E-SPC features an integrated pneumatic pump capable of generating pressures from vacuum to 35 bar (500 psi / 3.5 MPa) depending on the selected pressure range model. Advanced digital pressure sensing technology provides total one-year uncertainty down to ±0.025% FS, while the built-in barometer enables accurate pseudo-absolute pressure measurements. Its touchscreen interface with physical keypad simplifies calibration tasks, while integrated calibration records and due-date reminders improve asset management.
The calibrator also includes built-in HART® communication, electrical measurement and source functions, 24 V loop power, USB connectivity and optional Bluetooth® (country dependent). Quick-fit pressure adapters and an integrated dirt/moisture trap help minimize contamination and leakage during field calibration.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI610E-SPC |
| Product Type | Pneumatic Intrinsically Safe Pressure Calibrator |
| Safety Certification | Intrinsically Safe (ATEX / IECEx, Model Dependent) |
| Pressure Generation | Integrated Pneumatic Hand Pump |
| Pressure Range | Vacuum to 35 bar (500 psi / 3.5 MPa), Model Dependent |
| Pressure Types | Gauge & Pseudo Absolute (Built-in Barometer) |
| Pressure Accuracy | Up to ±0.025% FS (1-Year Total Uncertainty) |
| Pressure Sensor Technology | Advanced Digital Pressure Sensor |
| Built-in Barometer | Yes |
| Electrical Measurement | mA, mV, V, Resistance, Frequency & Switch Test |
| Electrical Source | Current & Voltage Source |
| Loop Power | 24 V Loop Supply |
| HART® Communication | Standard |
| Data Logging | Yes |
| Calibration Records | Integrated with Due-Date Countdown |
| Display | High-Contrast Touchscreen with Keypad |
| Connectivity | Micro USB |
| Bluetooth® | Optional (Country Dependent) |
| Remote Sensor Compatibility | PM700E Pressure Sensor & RTD Interface |
| Memory | Internal Calibration & Logging Storage |
| Battery Type | Rechargeable Lithium-Ion |
| Battery Charger | Mains Charger Included |
| Operating Temperature | -10°C to +50°C |
| Protection Rating | IP54 |
| Typical Applications | Hazardous Area Pressure Calibration, Pressure Transmitters, Gauges, Switches & Process Instruments |
Standard Accessories (Included)
- Druck DPI610E-SPC Pneumatic Intrinsically Safe Pressure Calibrator
- Rechargeable Lithium-Ion Battery
- AC Mains Battery Charger
- Integrated Carry Strap
- Test Leads
- G1/8 Female Pressure Adapter
- 1/8 NPT Female Pressure Adapter
- Integrated Dirt & Moisture Trap (Pneumatic Models)
- Factory Calibration Certificate
- Quick Start User Guide
Optional Accessories
- 1 m Pneumatic Pressure Hose
- Bluetooth® Option (Country Dependent)
- PM700E Remote Pressure Sensor
- RTD Interface Module
- 4Sight2 Calibration Software
- Carrying Case
- Pressure Adapter Kits
All pneumatic DPI610E models are supplied with an integrated dirt/moisture trap, while Bluetooth®, remote sensors, RTD interface modules and additional hose or adapter kits are optional depending on the ordered configuration
Note: Different range options are available on request.
Pressure Range:
- 03G- 350 mbar/5 psi/35 kPa
- 05G- 1 bar/15 psi/100 kPa
- 07G- 2 bar/30 psi/200 kPa
- 08G- 3.5 bar/50 psi/350 kPa
- 10G- 7 bar/100 psi/700 kPa
- 11G- 10 bar/150 psi/1000 kPa
- 13G- 20 bar/300 psi/2 MPa
- 14G- 35 bar/500 psi/3.5 MPa
