Description

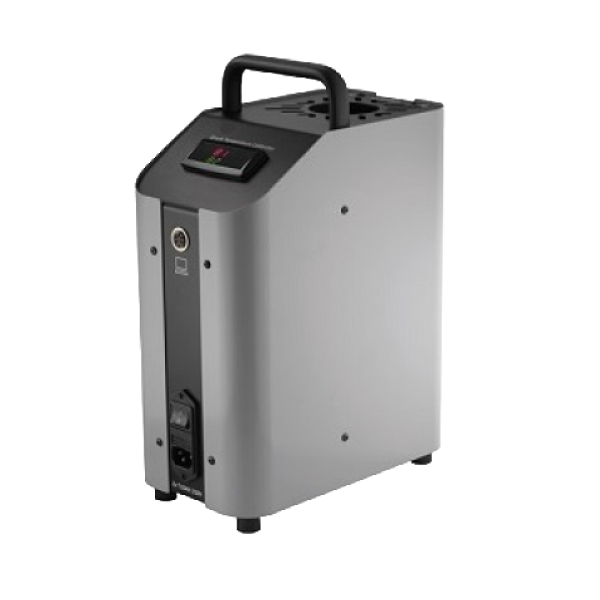

The Druck DRYTC165 is a compact, high-precision dry block temperature calibrator designed for accurate calibration of temperature sensors in laboratory, workshop and field environments. With an operating range from -35°C to 165°C (-31°F to 329°F), it is ideal for calibrating RTDs, thermocouples, temperature switches, thermometers and process temperature probes.
The DRYTC165 incorporates advanced metal block heating and cooling technology to deliver rapid temperature changes, excellent stability and high calibration accuracy. An integrated reference temperature sensor eliminates the need for an external reference probe in many applications, while interchangeable well inserts accommodate a wide variety of probe diameters.
Designed for simple operation, the calibrator features an intuitive 4-button interface with programmable setpoints, selectable °C/°F display and optional serial connectivity for integration with Druck 4Sight2 Calibration Management Software. Its lightweight, rugged construction makes it well suited for field service, maintenance and quality assurance applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DRYTC165 |
| Product Type | Dry Block Temperature Calibrator |
| Temperature Range | -35°C to 165°C (-31°F to 329°F) |
| Accuracy | ±0.2°C |
| Temperature Stability | ±0.05°C |
| Temperature Resolution | 0.1°C / 0.1°F |
| Display Range | -50°C to 165°C |
| Heating & Cooling | Rapid Heating and Cooling |
| Heating Technology | Advanced Metal Block Technology |
| Integrated Reference Sensor | Yes |
| Calibration Well Diameter | 28 mm |
| Calibration Well Depth | 150 mm |
| Measurement Zone | 110–150 mm |
| Well Inserts | Interchangeable Precision Inserts |
| Temperature Units | °C & °F |
| User Interface | 4-Button Keypad with Digital Display |
| Communication Interface | RS-485 (MODBUS RTU/JBUS) |
| Optional PC Connectivity | TCUSB Interface with 4Sight2 Software |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | 375 W |
| Operating Environment | Indoor Use |
| Construction | Lightweight & Portable |
| Typical Applications | RTDs, Thermocouples, Temperature Switches, Thermometers & Process Sensors |
Standard Accessories (Included)
- Druck DRYTC165 Dry Block Temperature Calibrator
- Standard Well Insert
- Insert Extraction Tool
- Power Cable
- Traceable Calibration Certificate
- User Manual
Optional Accessories
- Additional Precision Well Inserts
- TCUSB PC Communication Kit
- 4Sight2 Calibration Management Software
- Aluminum Transit Carrying Case (TCCASE1)
- Probe Support Stand (TCSTAND)
The standard package includes the calibrator, standard insert, insert extraction tool, power cable, calibration certificate and documentation. Communication accessories, carrying case and additional inserts are available separately.
