Description

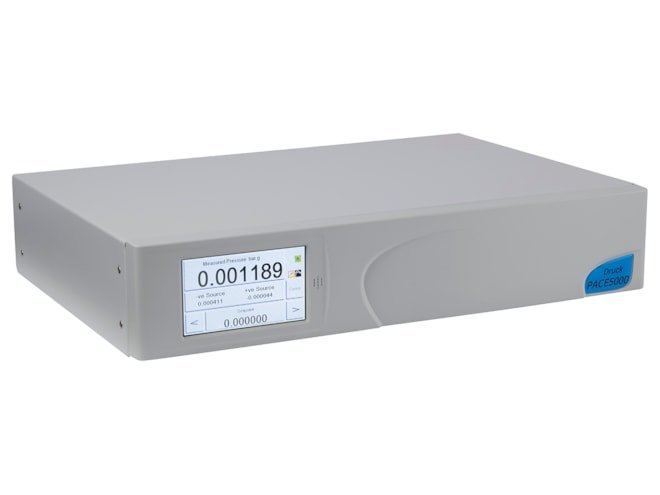

The Druck PACE5000E is a next-generation single-channel modular precision pressure controller designed for laboratory, production, research, calibration and automated test applications. Built on Druck’s proven PACE platform, it combines advanced digital pressure control with interchangeable control modules to deliver exceptional accuracy, stability and control speed across a wide range of pressure calibration tasks.
The PACE5000E utilizes advanced piezo-resistive and TERPS® pressure sensor technology with full digital control to achieve industry-leading performance. It offers stable pressure control in as little as 1.5 seconds, control stability down to 0.001% FS, and supports pressure ranges up to 210 bar (3000 psi / 21 MPa) depending on the installed control module. The modular design allows users to easily change pressure ranges by replacing the control module without replacing the entire controller.
A large color touchscreen with an intuitive icon-driven interface simplifies operation, while standard USB, Ethernet, RS232 and optional IEEE-488 communications enable seamless integration into automated calibration systems. The PACE5000E is backward compatible with existing PACE control modules and SCPI commands, making it an ideal upgrade for existing PACE5000 installations.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PACE |
| Model | PACE5000E |
| Product Type | Modular Precision Pressure Controller |
| Configuration | Single-Channel Pressure Controller |
| Pressure Range | Up to 210 bar (3000 psi / 21 MPa), Module Dependent |
| Pressure Types | Gauge, Absolute & Differential (Module Dependent) |
| Control Technology | Full Digital Pressure Control |
| Sensor Technology | Piezo-Resistive & TERPS® Sensors |
| Pressure Control Stability | Up to ±0.001% FS |
| Control Response Time | As Fast as 1.5 Seconds |
| Measurement Accuracy | Up to ±0.0004% Reading + ±0.0027% FS (Configuration Dependent) |
| Long-Term Stability | From ±0.001% FS |
| Display | High-Resolution Color Touchscreen |
| User Interface | Icon-Based Task Menu with Context Help |
| Pressure Units | 28 Standard + 4 User-Defined Units |
| Interchangeable Control Modules | Yes |
| Barometric Reference | Optional |
| Aeronautical Mode | Optional |
| Switch Test | Optional |
| Leak Test | Optional |
| Burst Test | Optional |
| Test Program | Optional |
| Analog Output | Optional |
| Voltage-Free Contacts | Optional |
| Communication Interfaces | USB, Ethernet & RS232 |
| IEEE-488 (GPIB) | Optional |
| Communication Protocols | SCPI-99, USBTMC, LXI 1.6 (VXI-11 & HiSLIP) |
| Software Compatibility | NI IVI-C & LabVIEW Drivers |
| Mounting Options | Bench Top or 19-inch Rack Mount |
| Backward Compatibility | Compatible with Existing PACE Control Modules & SCPI Commands |
| Typical Applications | Calibration Laboratories, Production Testing, Research, Aerospace, Industrial Testing & Automated Test Systems |
Standard Accessories (Included)
- Druck PACE5000E Controller Chassis
- AC Power Cord
- Calibration Certificate
- Quick Start Guide
- User Documentation
Optional Accessories
- PACE CM Interchangeable Control Modules
- Barometric Reference Module
- IEEE-488 (GPIB) Interface
- Rack Mount Kit
- Analog Output Option
- Switch Test Option
- Leak Test Option
- Burst Test Option
- Test Program Option
- Voltage-Free Contact Option
- Pressure Connection Adapter Kits
The standard package includes the PACE5000E controller chassis, power cord, calibration certificate and documentation. Control modules and optional application features are ordered separately according to the required pressure range and application.
