Description

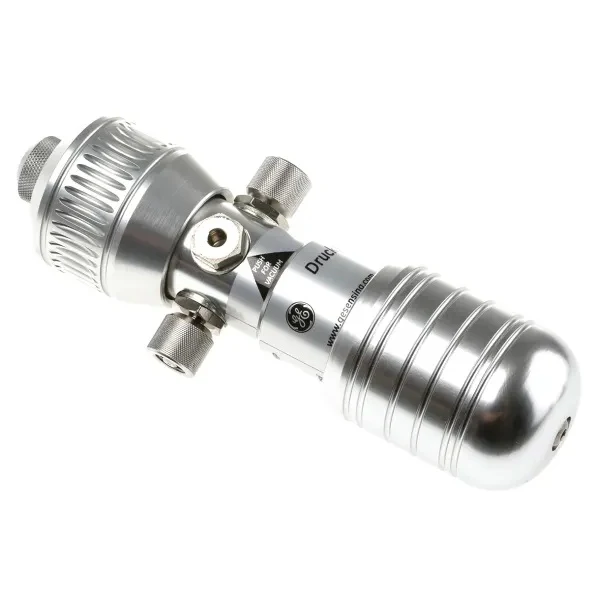

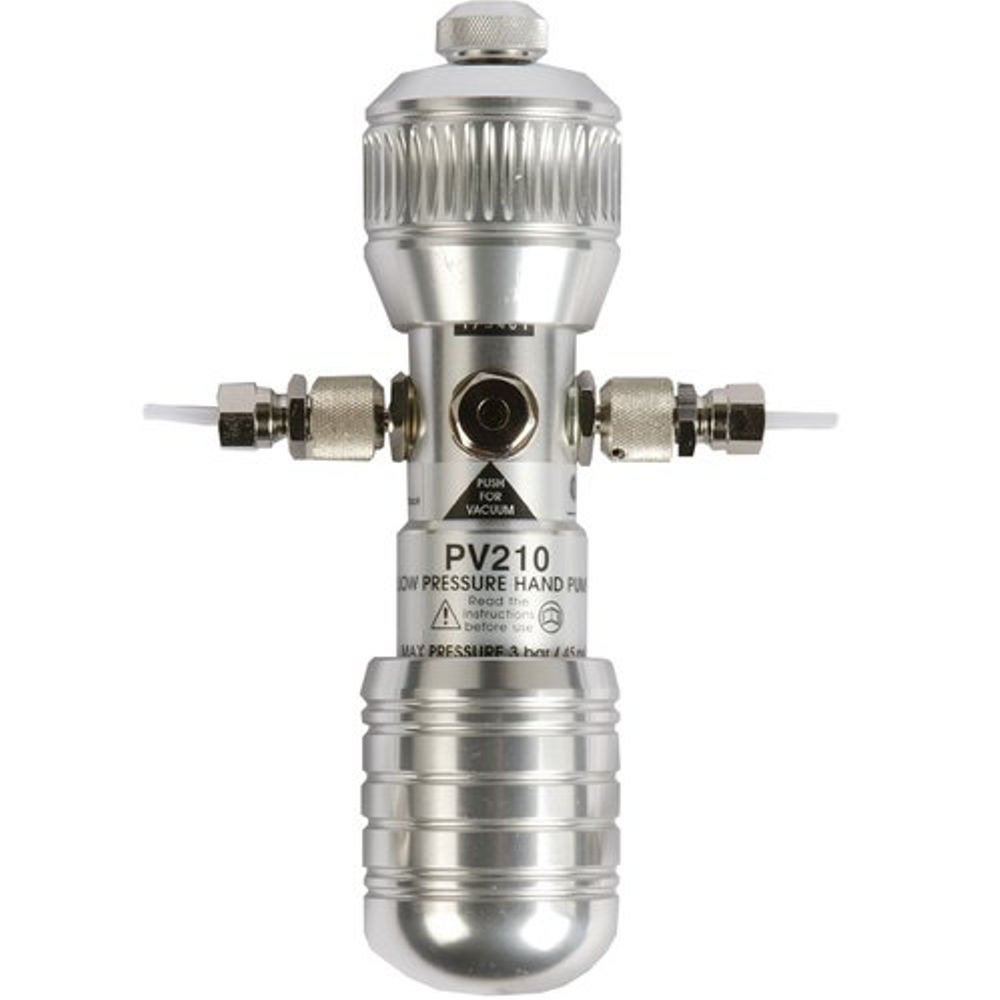

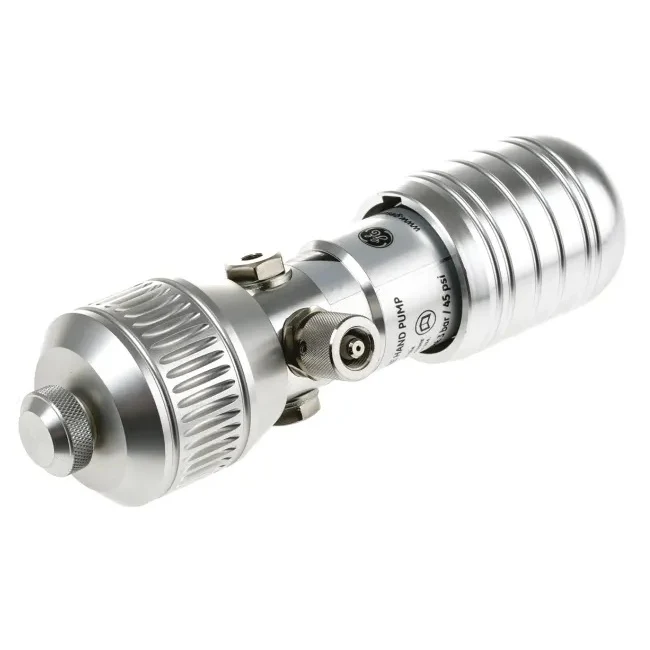

The Druck PV210 is a lightweight, rugged low-pressure and vacuum hand pump designed for precise pressure generation in calibration and testing applications. It generates pneumatic pressure up to 45 psi (1250 inH₂O) and vacuum down to -27 inHg, making it ideal for calibrating low-pressure transmitters, gauges, switches and other process instruments.
Designed specifically for low-pressure calibration, the PV210 features a thermally insulated body to minimize the effects of hand temperature, ensuring stable and repeatable pressure generation. An integrated fine-adjust vernier provides precise pressure control down to 0.01 inH₂O, while the built-in adjustable pressure relief valve protects sensitive instruments from overpressure.
The PV210 includes quick-fit connectors for fast, tool-free hose installation and can be used as a portable pressure or vacuum source for field and laboratory calibration applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | PV210 |
| Product Type | Low Pressure & Vacuum Hand Pump |
| Pressure Type | Pneumatic |
| Pressure Range | 0 to 45 psi (0 to 1250 inH₂O) |
| Vacuum Range | 0 to -27 inHg |
| Fine Control Resolution | 0.01 inH₂O |
| Pressure Generation | Manual Hand Pump |
| Pressure/Vacuum Selection | Integrated Selector Valve |
| Fine Adjustment | Precision Vernier Control |
| Pressure Release | Fine Needle Release Valve |
| Pressure Relief Valve | Adjustable, Built-In |
| Relief Valve Adjustment | 20 inH₂O to Maximum Pressure |
| Connectors | Finger-Tight Quick-Fit Connectors |
| Hose Connection | 1/4 in NPT Female Adapters |
| Hose Length | Two 3 ft (0.9 m) Nylon Hoses |
| Materials | Nickel-Plated Brass, Anodized Aluminum, Phosphor Bronze, Nitrile Seals |
| Thermal Protection | Thermally Insulated Body |
| Dimensions | 6.7 in × 1.8 in Diameter (Approx. 170 × 46 mm) |
| Weight | Approx. 1 lb (0.45 kg) |
| Applications | Pressure & Vacuum Calibration, Instrument Testing, Leak Testing |
Standard Accessories (Included)
- Druck PV210 Low Pressure & Vacuum Hand Pump
- Two 3 ft (0.9 m) Flexible Nylon Hoses
- Two 1/4 in NPT Female Adapters
- Instruction Manual
Optional Accessories
- Carrying Case Kit (PV210-HA)
- IAS-A110 Service Kit
The standard PV210 package includes the hand pump, two nylon hoses and 1/4 in NPT female adapters. The carrying case kit and service kit are available as optional accessories.
