Description

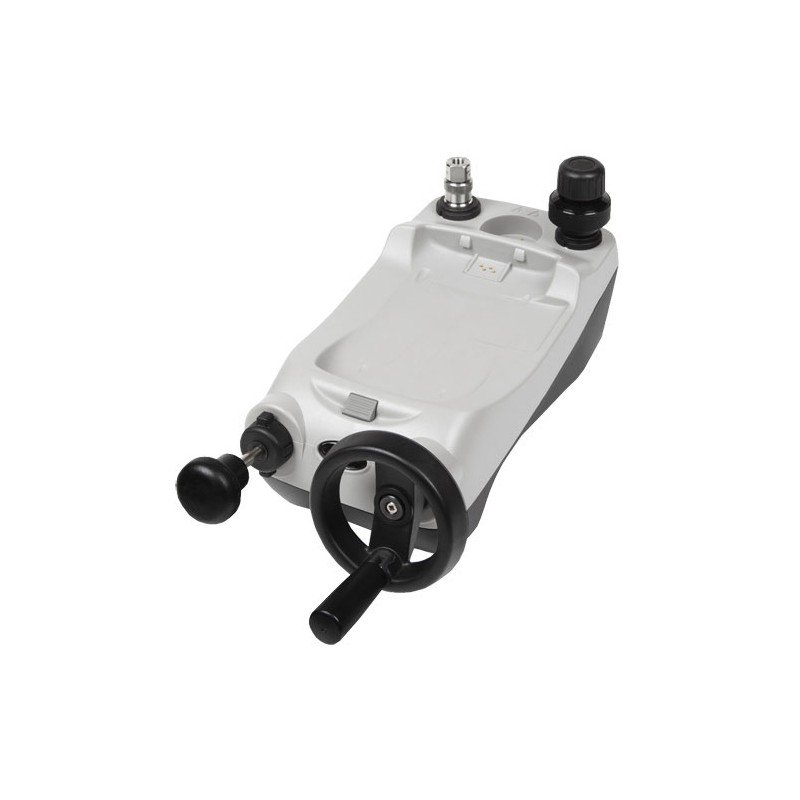

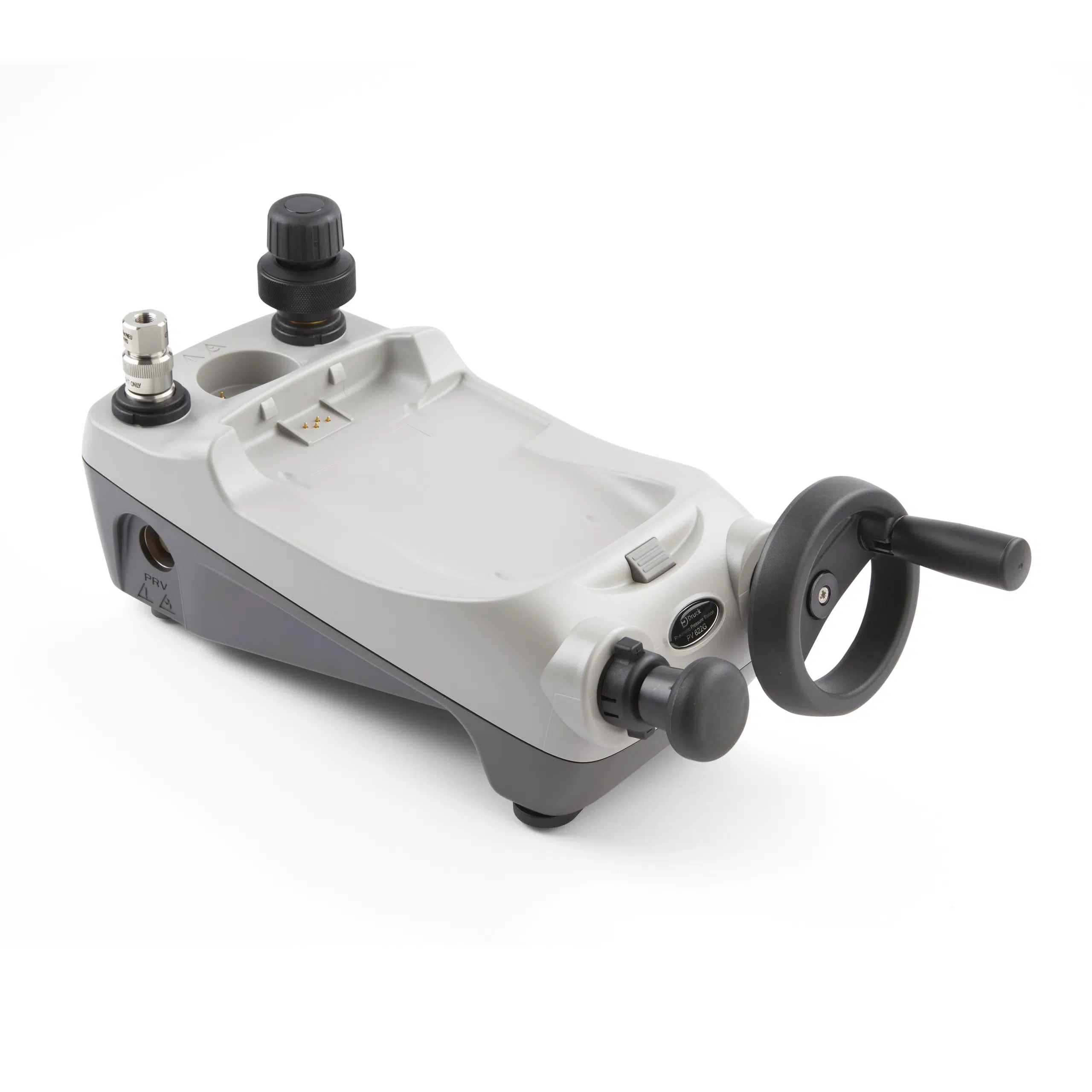

The Druck PV622 is a portable pneumatic pressure generating base station designed to provide fast, accurate and efficient pressure generation for calibration, testing and maintenance applications. As part of the Druck Genii Advanced Modular Calibration System, it can operate as a standalone pressure generator or be combined with the DPI620G multifunction calibrator and PM620 series pressure modules to create a fully integrated pressure calibration system.
The PV622 generates pressures from 95% vacuum to 100 bar (1500 psi) using an innovative dual-stage design that combines a manual hand pump with a precision screw press for effortless high-pressure generation and fine pressure control. It provides significantly greater efficiency than conventional hand pumps while eliminating the need for gas bottles in many field calibration applications.
Designed for both field and bench-top use, the PV622 features a tool-free quick-fit pressure connection system, interchangeable pressure adapters and compatibility with comparator accessories. A hazardous-area (PV622-IS) version is also available for intrinsically safe applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | PV622 |
| Product Type | Pneumatic Pressure Generating Base Station |
| Pressure Generation Type | Pneumatic |
| Pressure Range | 95% Vacuum to 100 bar (1500 psi) |
| Maximum Pressure | 100 bar (1500 psi) |
| Vacuum Capability | 95% Vacuum |
| Pressure Media | Non-Corrosive Gases |
| Pump Design | Dual-Stage Hand Pump with Screw Press Intensifier |
| Fine Pressure Control | Precision Screw Press |
| Standalone Operation | Yes |
| Comparator Function | Bench-Top Comparator Compatible |
| Compatible Calibrator | Druck DPI620G Series |
| Compatible Pressure Modules | PM620 & PM620T Series |
| Pressure Connections | Quick-Fit Tool-Free System |
| Standard Pressure Adapters | G1/8 Female & 1/8 NPT Female |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Pressure Safety | Pressure Equipment Directive Class SEP |
| Approvals | CE & UKCA |
| Hazardous Area Version | PV622-IS (ATEX & IECEx) |
| Dimensions | 450 × 280 × 235 mm |
| Weight | Approx. 3.30 kg |
| Typical Applications | Pressure Calibration, Instrument Testing, Comparator Testing & Field Service |
Standard Accessories (Included)
- Druck PV622 Pneumatic Pressure Generating Base Station
- G1/8 Female Pressure Adapters (2)
- 1/8 NPT Female Pressure Adapters (2)
- Carry Strap
- Quick Reference Guide
- User Manual (CD or Digital Documentation)
Optional Accessories
- Comparator Adapter (IO620-COMP)
- Pressure Adapter Kits (BSP, NPT & Metric)
- Pressure Relief Valve Kits
- Pressure Station Carrying Case (IO620-CASE-3)
- Blanking Plug (IO620-BLANK)
- PM620 / PM620T Pressure Modules
- DPI620G Multifunction Calibrator
The standard package includes the PV622 pressure station, G1/8 and 1/8 NPT adapters, carry strap, quick reference guide and user documentation. Comparator accessories, adapter kits, pressure modules and the DPI620G calibrator are available separately.
