Description

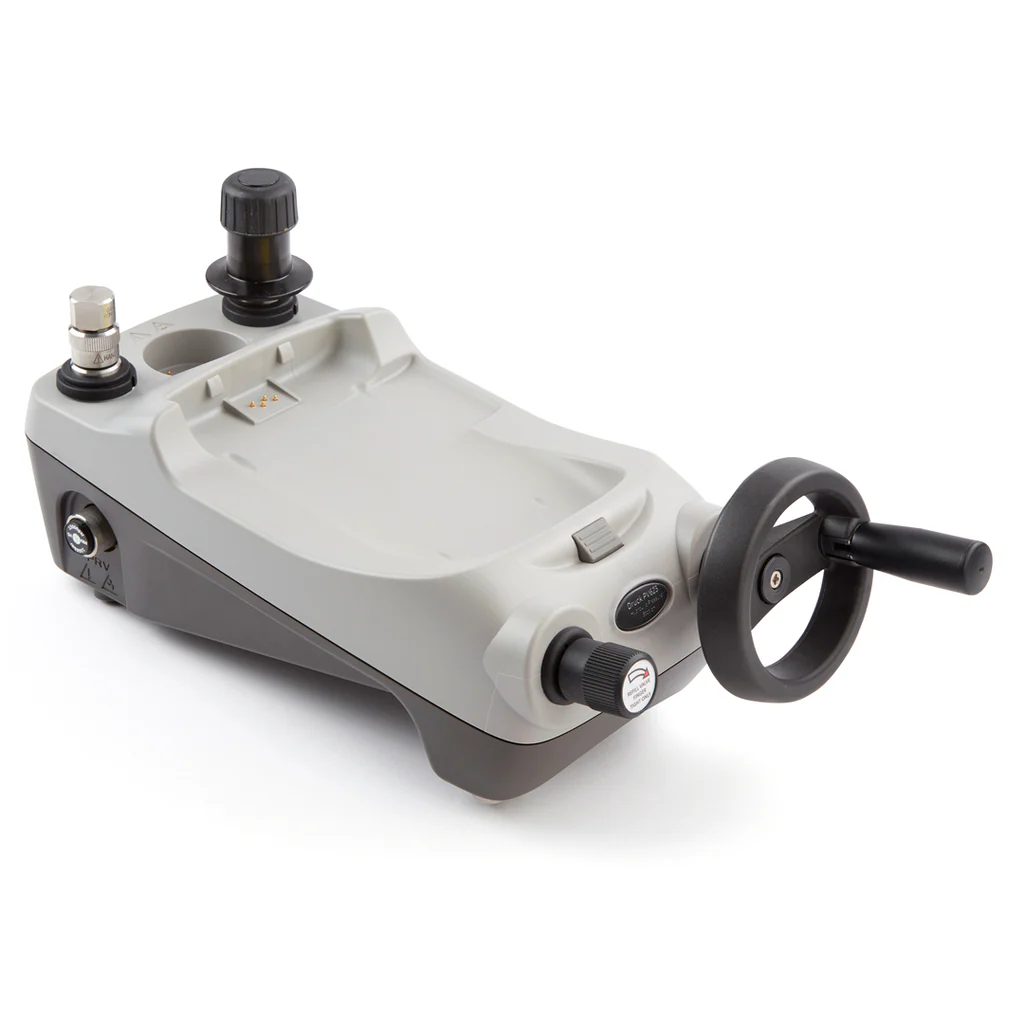

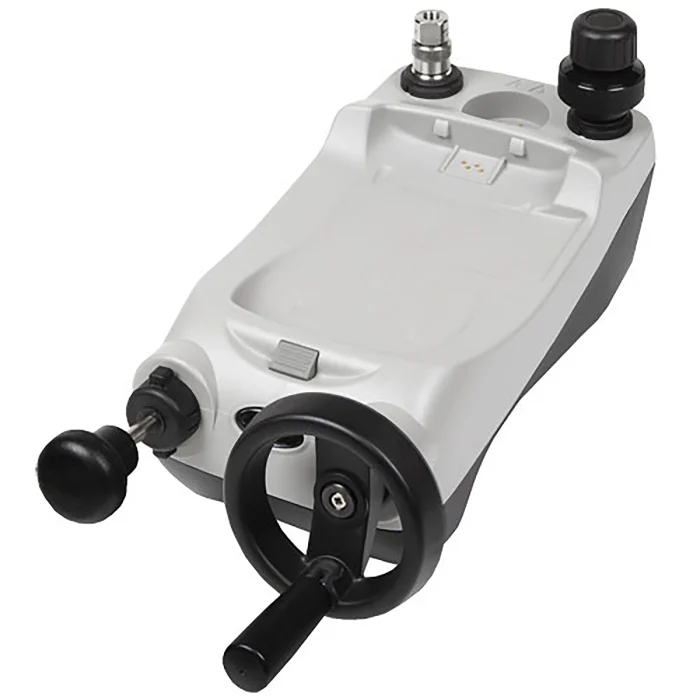

The Druck PV623 is a portable hydraulic pressure generating base station designed for high-pressure calibration, testing and maintenance applications. As part of the Druck Genii Advanced Modular Calibration System, it can be used as a standalone hydraulic pressure generator or combined with the DPI620G multifunction calibrator and PM620 series pressure modules to create a fully integrated hydraulic pressure calibration system. It provides rapid, stable and precise pressure generation without the need for conventional hydraulic hand pumps or complex priming procedures.
The PV623 generates hydraulic pressure from 0 to 1000 bar (15,000 psi) using an innovative dual-stage design with a hand pump and precision screw press. This design enables fast pressure generation, fine pressure adjustment and stable pressure within one minute, making it ideal for calibrating pressure gauges, transmitters, switches and pressure sensors. The station can also be used as a bench-top hydraulic comparator for calibration work.
Designed for field and laboratory use, the PV623 features tool-free quick-fit pressure connections, compatibility with demineralized water or low-viscosity mineral oil, and a rugged portable construction. An intrinsically safe PV623-IS version is available for hazardous-area applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | PV623 |
| Product Type | Hydraulic Pressure Generating Base Station |
| Pressure Generation Type | Hydraulic |
| Pressure Range | 0 to 1000 bar (0 to 15,000 psi) |
| Maximum Pressure | 1000 bar (15,000 psi) |
| Pump Design | Dual-Stage Hand Pump with Precision Screw Press |
| Pressure Control | Fine Pressure Adjustment |
| Pressure Stability | Stable Pressure Within 1 Minute |
| Pressure Media | Demineralized Water or Mineral Oil (ISO Viscosity Grade <22) |
| Standalone Operation | Yes |
| Comparator Function | Bench-Top Comparator Compatible |
| Compatible Calibrator | Druck DPI620G Series |
| Compatible Pressure Modules | PM620 & PM620T Series |
| Pressure Connections | Tool-Free Quick-Fit System |
| Standard Pressure Adapters | G1/8 Female & 1/8 NPT Female |
| Operating Temperature | -10°C to +50°C (Water: +4°C to +50°C) |
| Storage Temperature | -20°C to +70°C (Drain Water Before Storage) |
| Pressure Safety | Pressure Equipment Directive Class SEP |
| Approvals | CE & UKCA |
| Hazardous Area Version | PV623-IS (ATEX & IECEx) |
| Dimensions | 450 × 280 × 235 mm |
| Weight | Approx. 3.75 kg |
| Typical Applications | High-Pressure Calibration, Instrument Testing, Hydraulic Comparator & Field Service |
Standard Accessories (Included)
- Druck PV623 Hydraulic Pressure Generating Base Station
- Plastic Hydraulic Fluid Refill Bottle
- G1/8 Female Pressure Adapters (2)
- 1/8 NPT Female Pressure Adapters (2)
- Carry Strap
- Quick Reference Guide
- User Manual (Digital)
Optional Accessories
- Comparator Adapter (IO620-COMP)
- Pressure Station Carrying Case (IO620-CASE-3)
- BSP, NPT & Metric Adapter Kits
- Pressure Relief Valve Kit
- PM620 / PM620T Pressure Modules
- Druck DPI620G Multifunction Calibrator
The standard package includes the PV623 base station, hydraulic refill bottle, G1/8 and 1/8 NPT adapters, carry strap, quick reference guide and user documentation. Pressure modules, comparator accessories, adapter kits and the DPI620G calibrator are available separately.
