Description

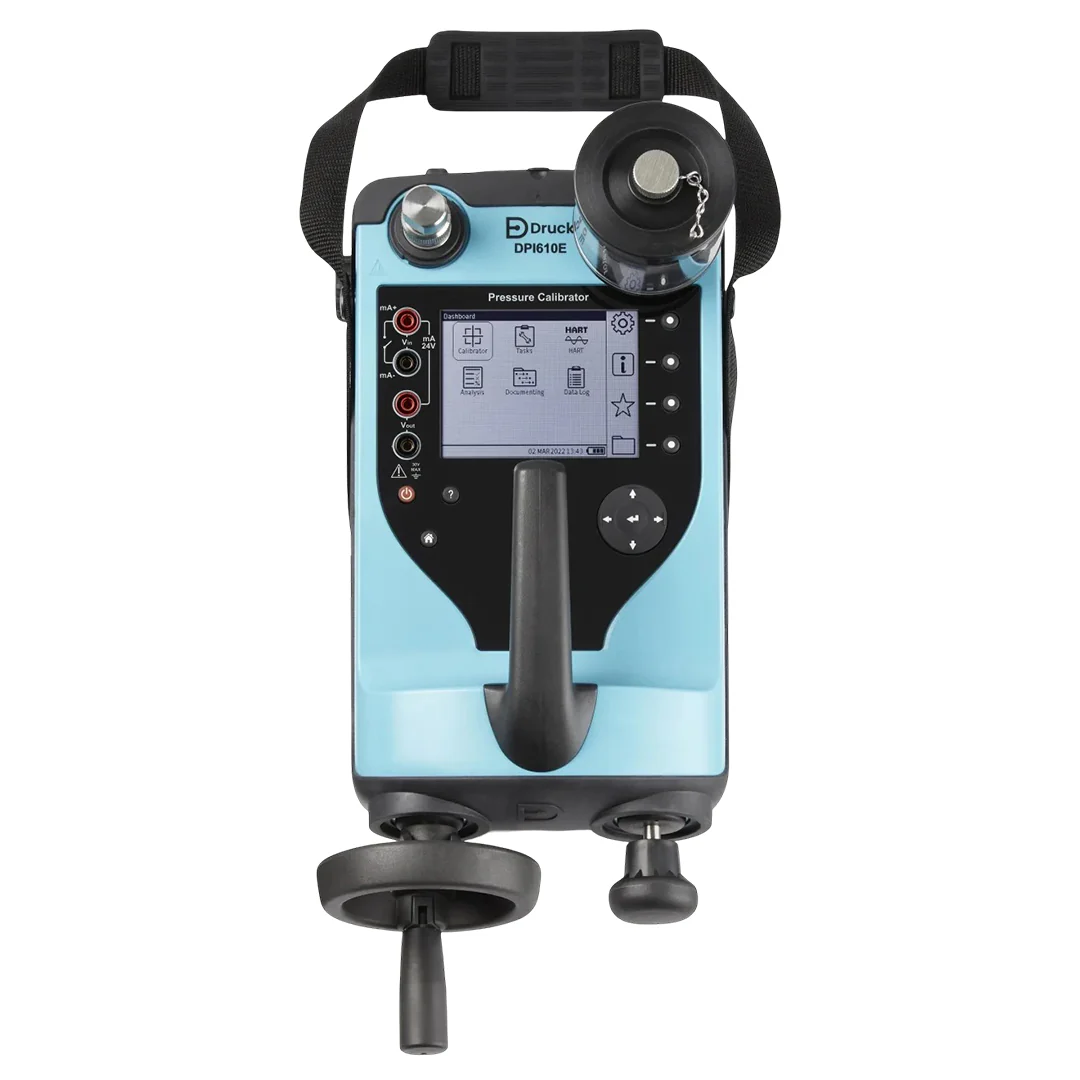

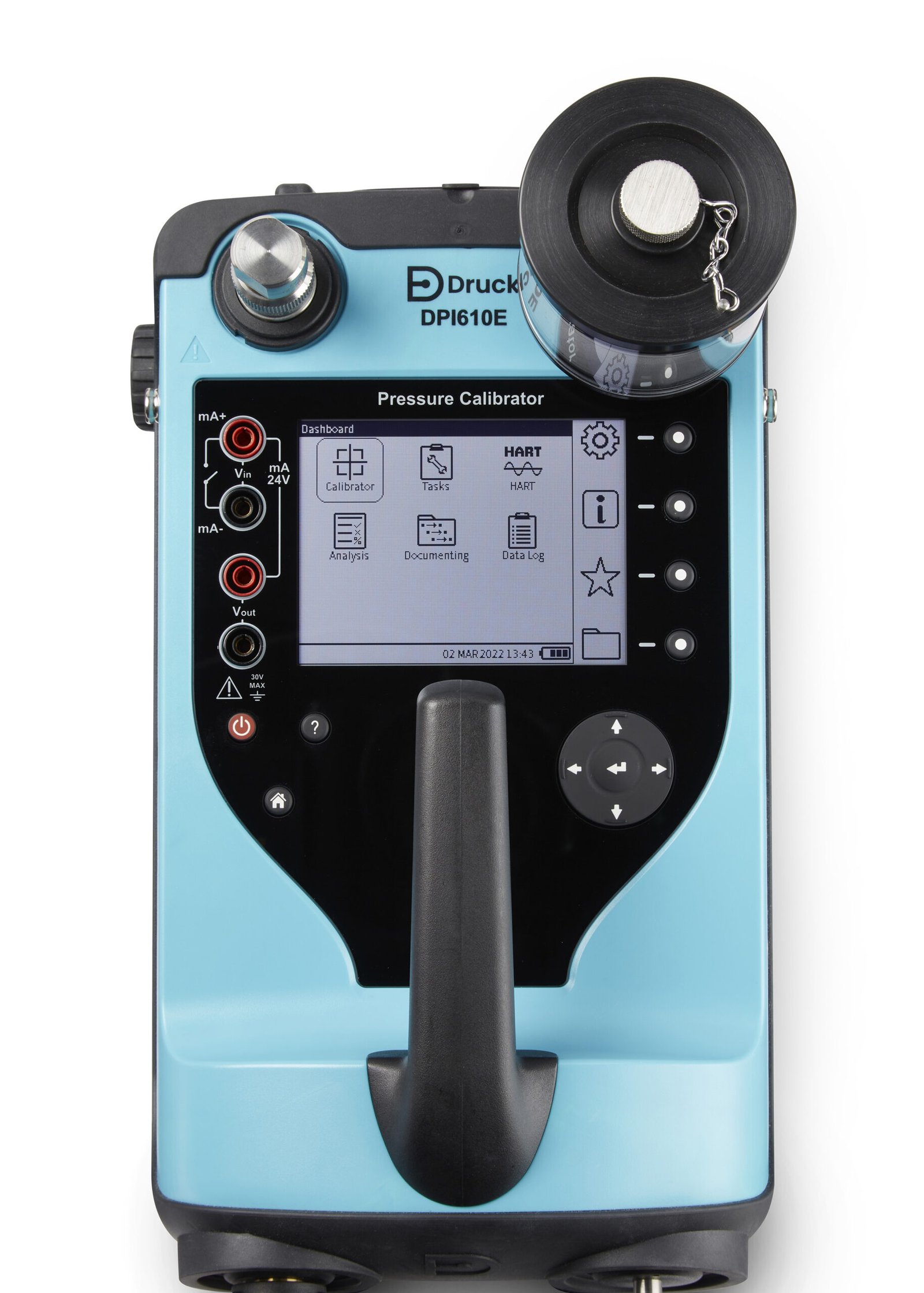

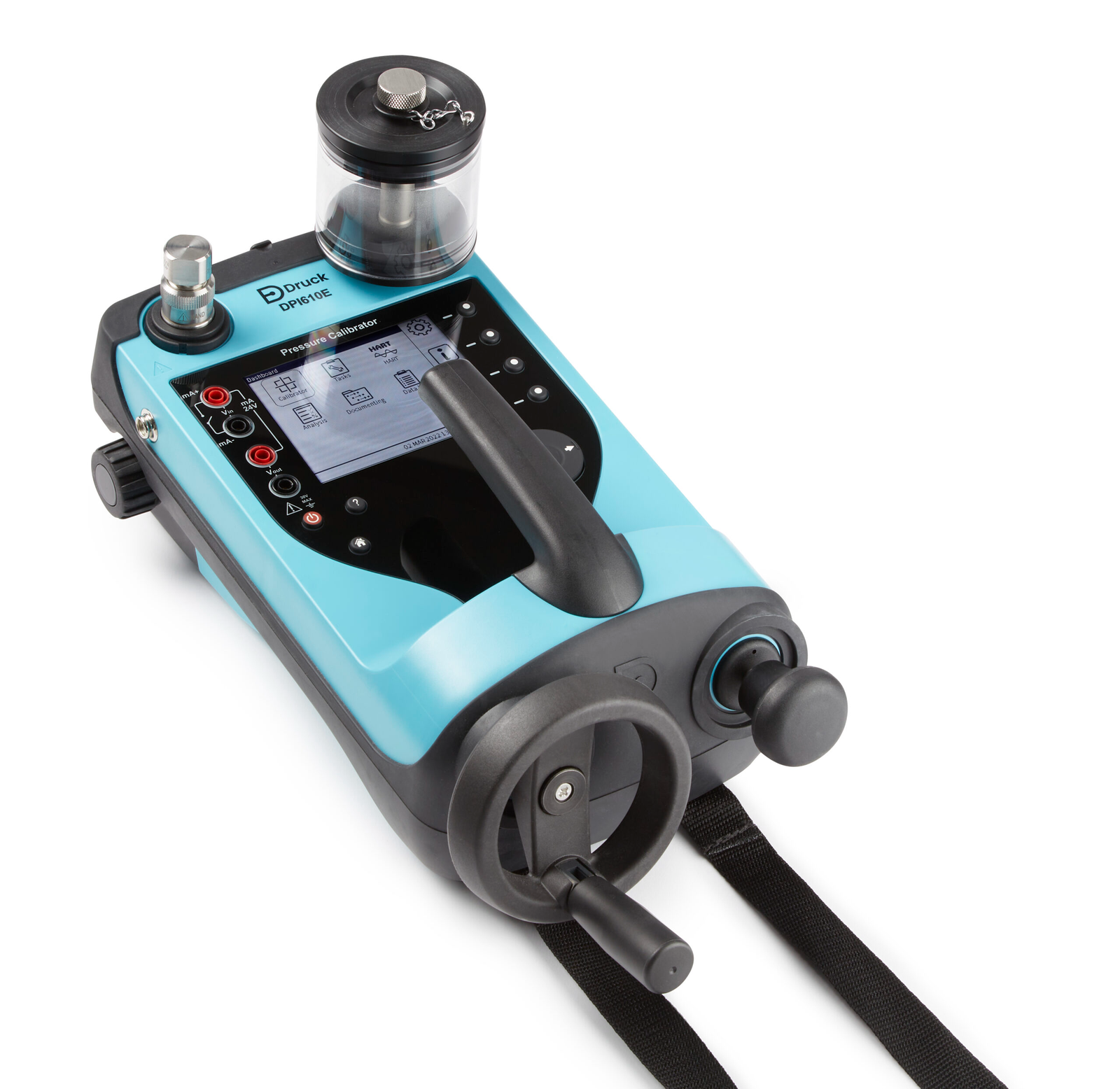

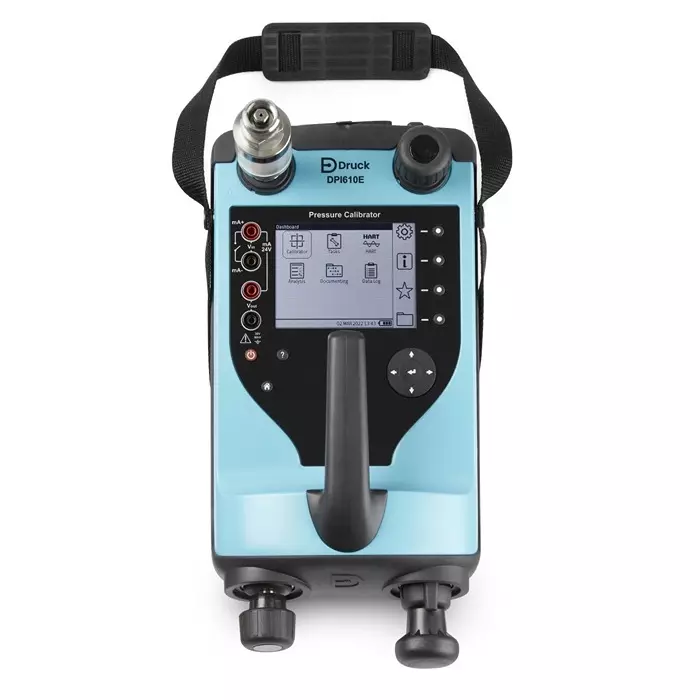

The Druck DPI610E-PC is a handheld pneumatic pressure calibrator designed for high-accuracy pressure calibration in safe-area industrial environments. As the latest generation of the renowned DPI600 Series, it combines pneumatic pressure generation, precision pressure measurement, electrical measurement and sourcing, HART® communication, loop power and advanced data logging into a single rugged portable instrument. It is ideal for calibrating pressure transmitters, gauges, switches and other process instruments in field and laboratory applications.
The DPI610E-PC features an integrated pneumatic pump capable of generating pressures from 95% vacuum to 35 bar (500 psi / 3.5 MPa), depending on the selected pressure range model. It includes a built-in barometer for pseudo-absolute pressure measurements and advanced digital pressure sensor technology that delivers total one-year uncertainty down to ±0.025% FS. The touchscreen and keypad interface provide fast, intuitive operation, while built-in HART® communication, electrical measurement and sourcing functions eliminate the need for multiple field instruments.
Designed for demanding field applications, the DPI610E-PC includes quick-fit pressure adapters, an integrated dirt and moisture trap, rechargeable lithium-ion battery, USB connectivity and optional Bluetooth® (country dependent). It also supports optional PM700E remote pressure sensors and RTD interface modules, making it a complete pressure calibration solution.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI610E-PC |
| Product Type | Pneumatic Pressure Calibrator |
| Application | Safe Area Use |
| Pressure Generation | Integrated Pneumatic Hand Pump |
| Pressure Range | 95% Vacuum to 35 bar (500 psi / 3.5 MPa), Model Dependent |
| Pressure Types | Gauge & Pseudo Absolute (Built-in Barometer) |
| Pressure Accuracy | Up to ±0.025% FS (1-Year Total Uncertainty) |
| Pressure Sensor Technology | Advanced Digital Pressure Sensor |
| Built-in Barometer | Yes |
| Electrical Measurement | mA, mV, V, Resistance, Frequency & Switch Test |
| Electrical Source | Current & Voltage Source |
| Loop Power | 24 V DC |
| HART® Communication | Standard |
| Data Logging | Yes |
| Calibration Records | Built-In with Due-Date Countdown |
| Display | High-Contrast Color Touchscreen with Keypad |
| Connectivity | Micro USB |
| Bluetooth® | Optional (Country Dependent) |
| Remote Sensor Compatibility | PM700E Pressure Sensor & RTD Interface |
| Memory | Internal Calibration & Logging Storage |
| Battery Type | Rechargeable Lithium-Ion |
| Battery Charger | AC Mains Charger |
| Operating Temperature | -10°C to +50°C |
| Protection Rating | IP54 |
| Typical Applications | Calibration of Pressure Transmitters, Gauges, Switches, Sensors & Process Instruments |
Standard Accessories (Included)
- Druck DPI610E-PC Pneumatic Pressure Calibrator
- Rechargeable Lithium-Ion Battery
- AC Mains Battery Charger
- Integrated Carry Strap
- Test Leads
- G1/8 Female Pressure Adapter
- 1/8 NPT Female Pressure Adapter
- Integrated Dirt & Moisture Trap
- Factory Calibration Certificate
- Quick Start Guide
Optional Accessories
- 1 m Pneumatic Pressure Hose
- Bluetooth® Option
- PM700E Remote Pressure Sensor
- RTD Interface Module
- 4Sight2 Calibration Software (Lite License Included)
- Pressure Adapter Kits
- Carrying Case
The standard package includes the calibrator, rechargeable battery, charger, carry strap, test leads, G1/8 and 1/8 NPT pressure adapters, an integrated dirt and moisture trap, factory calibration certificate and quick start guide. Bluetooth®, remote sensors, RTD interface modules and additional accessories are available separately.
Note: Different range options are available on request.
Pressure Range Options:
- 03G- 350 mbar/5 psi/35 kPa
- 05G- 1 bar/15 psi/100 kPa
- 07G- 2 bar/30 psi/200 kPa
- 08G- 3.5 bar/50 psi/350 kPa
- 10G- 7 bar/100 psi/700 kPa
- 11G- 10 bar/150 psi/1000 kPa
- 13G- 20 bar/300 psi/2 MPa
- 14G- 35 bar/500 psi/3.5 MPa
