Description

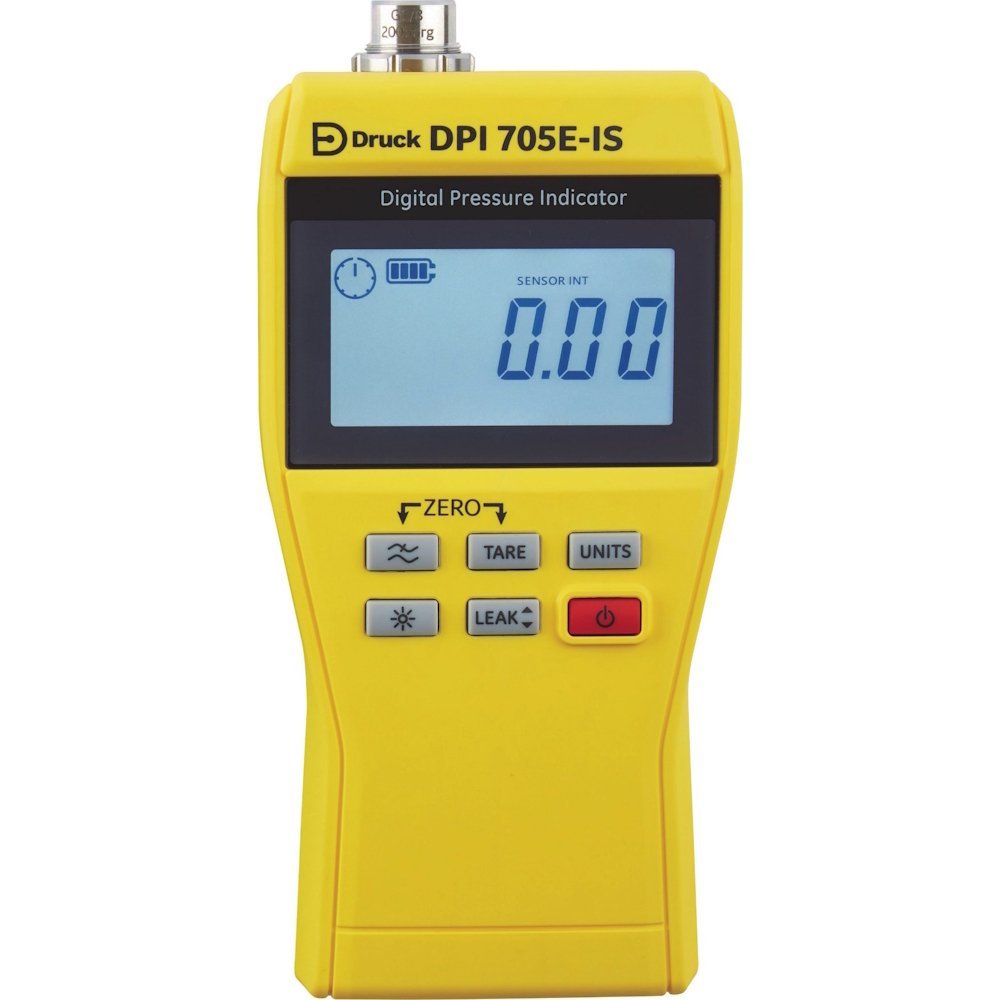

The Druck DPI705E-IS is an intrinsically safe handheld pressure indicator designed for accurate pressure measurement, maintenance and troubleshooting in hazardous (Ex) environments. Combining rugged construction with advanced digital pressure sensing technology, it delivers reliable performance for field service in oil & gas, petrochemical, chemical processing and other hazardous industrial applications. The DPI705E-IS is certified for use in hazardous areas and provides accurate pressure measurements with no warm-up time, making it ideal for routine maintenance and calibration tasks.
The instrument is available with 41 internal pressure ranges from ±25 mbar to 1,400 bar (±10 inH₂O to 20,000 psi) and offers total one-year uncertainty down to ±0.025% full scale, depending on the selected accuracy option. It features a large backlit LCD display, leak test, tare, minimum/maximum capture and filtering functions. The DPI705E-IS also supports optional plug-and-play PM700E remote pressure sensors and RTD temperature probes, expanding its pressure and temperature measurement capabilities.
Its lightweight ergonomic design, long battery life and compatibility with Druck pneumatic and hydraulic hand pumps make the DPI705E-IS an ideal portable pressure indicator for hazardous-area pressure testing, calibration and process maintenance. It is also compatible with Druck 4Sight2 calibration management software for automated calibration workflows.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI705E-IS |
| Product Type | Intrinsically Safe Handheld Pressure Indicator |
| Safety Certification | Intrinsically Safe (ATEX, IECEx & Regional Approvals, Model Dependent) |
| Pressure Range | ±25 mbar to 1,400 bar (±10 inH₂O to 20,000 psi), Model Dependent |
| Pressure Types | Gauge, Absolute, Differential & Barometric |
| Accuracy Options | Standard, High & Premium |
| Maximum Accuracy | Up to ±0.025% Full Scale (1-Year Total Uncertainty) |
| Sensor Technology | Digital Silicon Pressure Sensor |
| Display | High-Contrast LCD with Backlight |
| Pressure Units | 20 Selectable Units |
| Leak Test | Yes (1, 3 or 5 Minute Test) |
| Min / Max Display | Yes |
| Tare Function | Yes |
| Digital Filter | Yes |
| External Pressure Sensor | PM700E-IS Plug-and-Play Compatible |
| Temperature Measurement | Optional RTD-PROBE via RTD-INTERFACE-IS |
| Calibration Record | Built-In with Calibration Due Countdown |
| Data Management | Compatible with 4Sight2 Software |
| Communication | USB/RS485 via Optional Interface |
| Power Supply | 4 × AA Batteries |
| Battery Life | Up to 1 Year (Typical Use) |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to +50°C |
| Typical Applications | Hazardous Area Pressure Measurement, Maintenance, Leak Testing & Calibration |
Standard Accessories (Included)
- Druck DPI705E-IS Handheld Pressure Indicator
- 4 × AA Batteries
- Factory Calibration Certificate
- Quick Start Guide
- Safety Instructions
Optional Accessories
- PM700E-IS Remote Pressure Sensor
- RTD-INTERFACE-IS with RTD Temperature Probe
- Pneumatic & Hydraulic Hand Pumps (PV210, PV211, PV212, PV621, PV622 & PV623)
- Protective Carrying Case
- Magnetic Hanging Strap
- USB/RS485 Communication Cable
- 4Sight2 Calibration Management Software
The standard package includes the DPI705E-IS pressure indicator, AA batteries, factory calibration certificate, quick start guide and safety documentation. Remote pressure sensors, RTD accessories, communication cables and calibration software are available separately.
Note: Different range options are available on request.
Pressure Range Options:
Ordering Info:
