Description

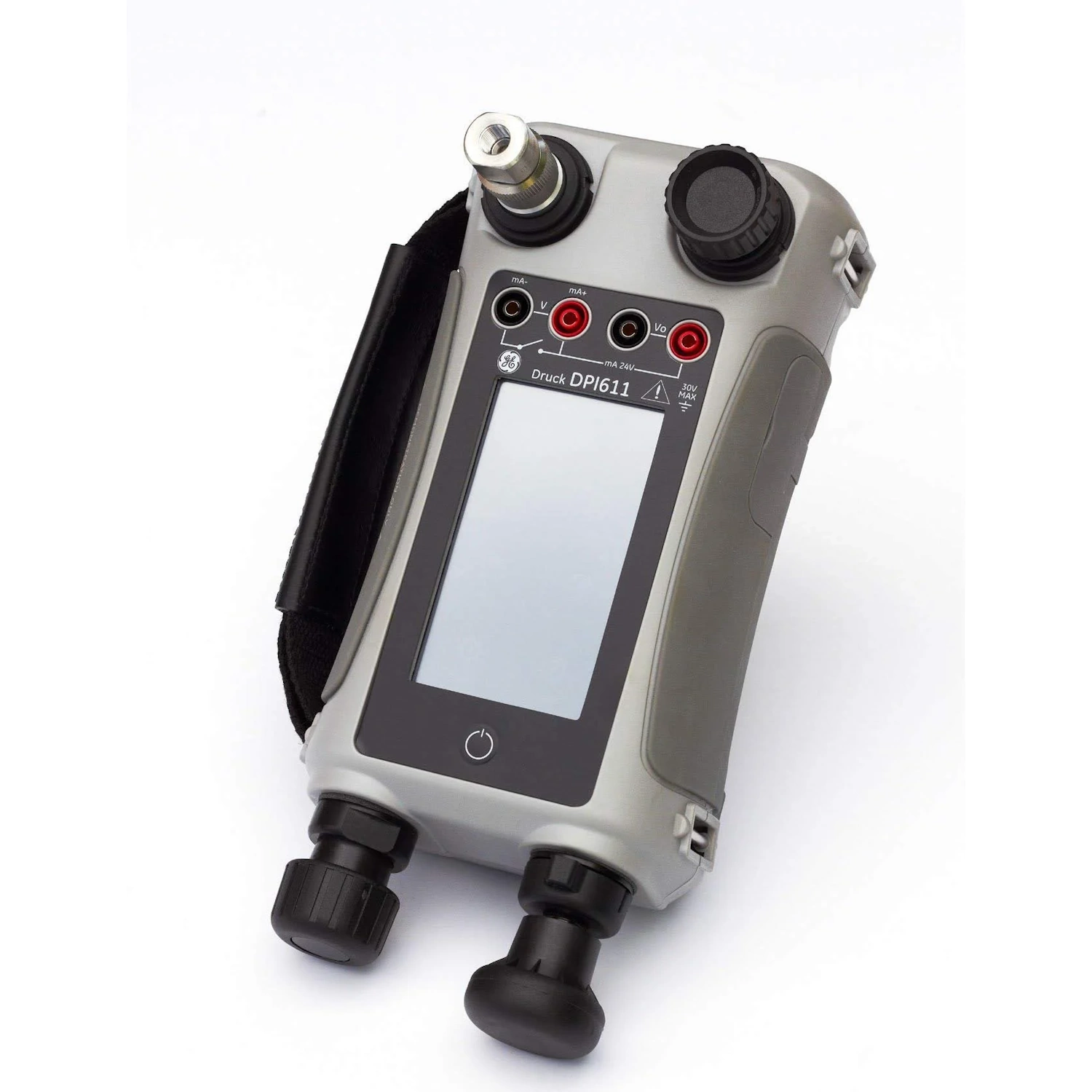

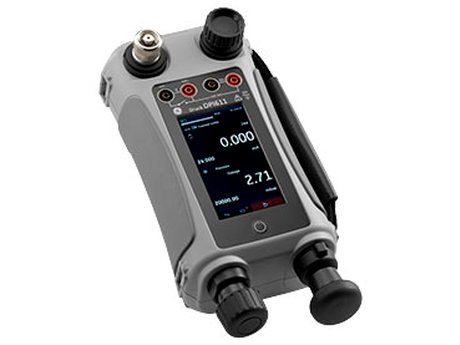

The Druck DPI611 is a compact, self-contained handheld pressure calibrator designed for fast and accurate calibration of pressure instruments in field and laboratory environments. Combining built-in pneumatic pressure generation, precision pressure measurement and electrical measurement/source functions, it eliminates the need for external pumps and additional calibration equipment.
The integrated pneumatic pump generates pressure from 95% vacuum to 20 bar (300 psi) in less than 30 seconds, while the precision volume adjuster enables fine pressure control for accurate calibration. The DPI611 also supports current and voltage measurement, loop power, switch testing and automated calibration procedures, making it ideal for calibrating pressure transmitters, gauges, switches and process instruments.
Its intuitive 4.3-inch color touchscreen provides quick access to applications, data logging, calibration documentation and PASS/FAIL analysis. With 8 GB internal memory and USB connectivity, the DPI611 simplifies calibration management while maintaining portability and ease of use.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI611 |
| Product Type | Handheld Pressure Calibrator |
| Pressure Generation | Built-In Pneumatic Hand Pump |
| Pressure Range | -1 to 20 bar (-14.5 to 300 psi), Model Dependent |
| Vacuum Capability | Up to 95% Vacuum |
| Pressure Generation Speed | 0 to 20 bar in Less Than 30 Seconds |
| Pressure Accuracy | Up to ±0.0185% FS |
| Pressure Connection | Tool-Free Quick-Fit Connection |
| Pressure Adaptors | G1/8 Female & 1/8 NPT Female |
| Pressure Media | Compatible Non-Corrosive Gases |
| Electrical Measurement | Voltage & Current |
| Electrical Source | Voltage & Current |
| Loop Power | 24 V Internal Loop Power |
| Switch Test | Supported |
| Data Logging | Multi-Channel |
| Calibration Documentation | Supported |
| PASS/FAIL Analysis | Supported |
| Internal Memory | 8 GB |
| Display | 4.3 in Color Touchscreen LCD |
| Display Resolution | 480 × 272 Pixels |
| Connectivity | USB Type-A & USB Mini-B |
| Power Supply | 8 × AA Alkaline Batteries |
| Battery Life | 18–26 Hours |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Ingress Protection | IP54 |
| Dimensions | 270 × 130 × 120 mm |
| Weight | Approx. 1.96 kg |
| Typical Applications | Pressure Transmitter, Gauge, Switch & Process Instrument Calibration |
Standard Accessories (Included)
- Set of AA Alkaline Batteries
- Hand Strap
- Set of Test Leads
- G1/8 Female Pressure Adapter
- 1/8 NPT Female Pressure Adapter
- Calibration Certificate
- Quick User Guide
- Electronic User Manual (Stored in Instrument Memory)
The standard accessories are listed in the official Druck DPI611 datasheet and user manual.
Ordering Info
- DPI611-05G for -1 to 1 bar / -14.5 to 15 psi gauge range
- DPI611-07G for -1 to 2 bar / -14.5 to 30 psi gauge range
- DPI611-10G for -1 to 7 bar / -14.5 to 100 psi gauge range
- DPI611-11G for -1 to 10 bar / -14.5 to 150 psi gauge range
- DPI611-13G for -1 to 20 bar / -14.5 to 300 psi gauge range
