Description

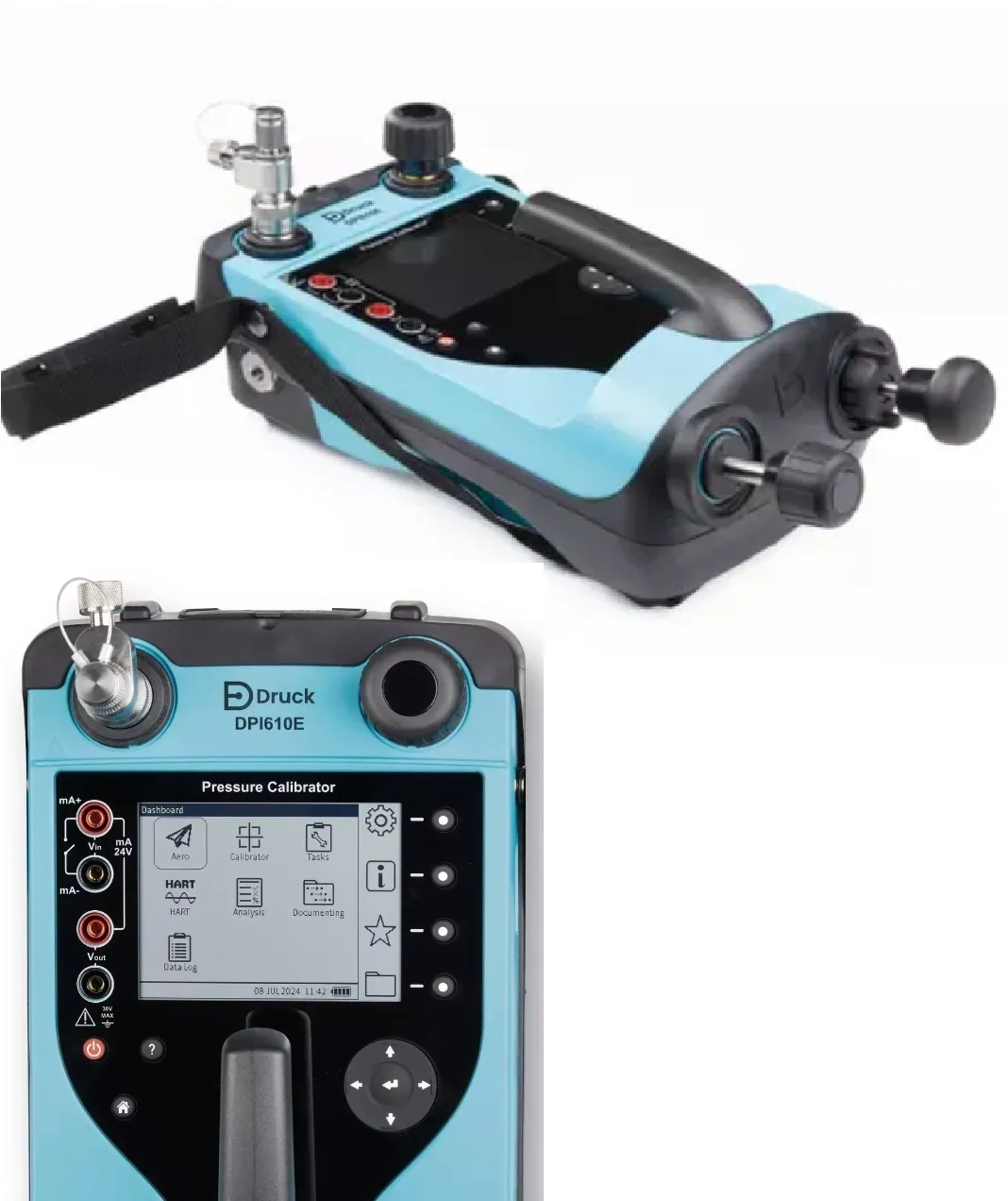

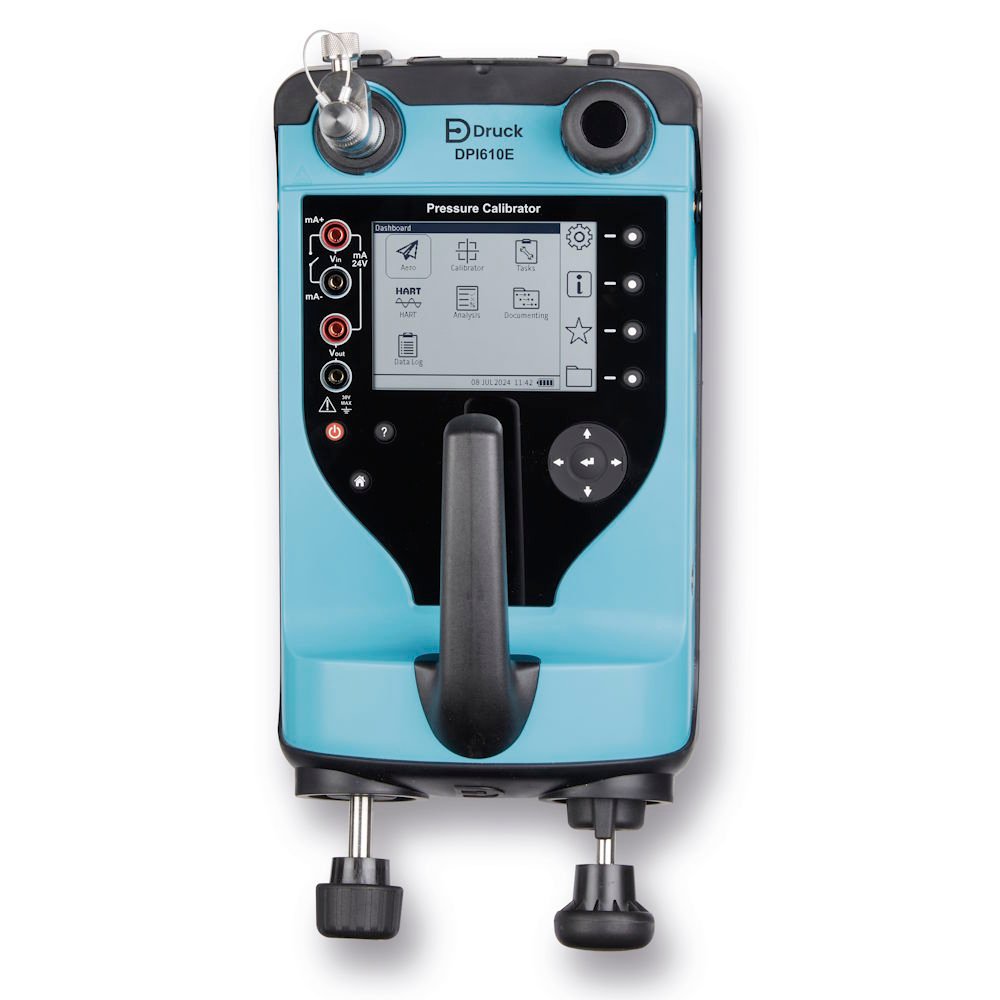

The Druck DPI610E-Aero is a compact, portable aircraft leak tester designed for precision leak testing and calibration of aircraft pitot-static systems. It is ideal for post-maintenance verification following air data computer (ADC) replacement, pitot-static repairs, and routine aircraft maintenance.
Configured as a single-channel instrument, the DPI610E-Aero can be used for either altitude or airspeed testing. It features an integrated pneumatic pressure/vacuum pump, fine pressure adjustment and controlled venting, providing a completely self-contained solution for aircraft leak testing without the need for external pressure sources.
The instrument incorporates Druck’s latest TERPS® pressure sensing technology for high accuracy and long-term stability. It also includes leak testing, switch testing, altitude and airspeed display, electrical measurement and source functions, and USB data logging. A built-in rate-of-climb limitation protects sensitive aircraft instruments during testing, making the DPI610E-Aero an ideal solution for commercial aviation, military aircraft, helicopters, drones and eVTOL maintenance.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | DPI610E-Aero |
| Product Type | Portable Aircraft Leak Tester |
| Configuration | Single-Channel |
| Primary Applications | Aircraft Pitot-Static Leak Testing & Calibration |
| Test Parameters | Altitude or Airspeed |
| Altitude Range | -3,000 to 50,000 ft |
| Airspeed Range | 0 to 600 knots |
| Altitude Accuracy | Up to ±11 ft |
| Airspeed Accuracy | Up to ±0.15 knots |
| Pressure Sensor Technology | TERPS® Pressure Sensor |
| Pressure Generation | Integrated Pneumatic Hand Pump |
| Vacuum Generation | Integrated |
| Fine Pressure Adjustment | Yes |
| Controlled Venting | Yes |
| Leak Testing | Yes |
| Altitude Switch Testing | Yes |
| Airspeed Switch Testing | Yes |
| Electrical Measurement | Voltage & Current |
| Electrical Source | Voltage & Current Loop |
| Data Logging | USB Data Transfer |
| Display | High-Resolution Backlit Color Display |
| User Interface | Task-Oriented Menu |
| Pressure Connections | AN4, AN6, Hansen or Staubli Quick-Fit Options |
| Maximum Rate of Climb/Descent | ±6,000 ft/min |
| Operating Temperature | -10°C to +50°C |
| Pressure Units | mbar, hPa, kPa, psi, mmHg, inHg, inH₂O |
| Airspeed Units | Knots, km/h |
| Altitude Units | Feet, Metres |
| Power Supply | Rechargeable Battery |
| Connectivity | USB |
| Typical Applications | Aircraft Leak Testing, ADC Replacement Verification, Drone & eVTOL Testing, Fault Diagnosis |
Standard Accessories (Included)
- DPI610E-Aero Aircraft Leak Tester
- Rechargeable Battery Pack
- USB Communication Cable
- Calibration Certificate
- Quick Start Guide
- User Manual
Note: Pressure connection fittings (AN4, AN6, Hansen or Staubli), aircraft hose assemblies and application-specific accessories are available in different configurations and should only be listed as included if supplied with the ordered model.
