Description

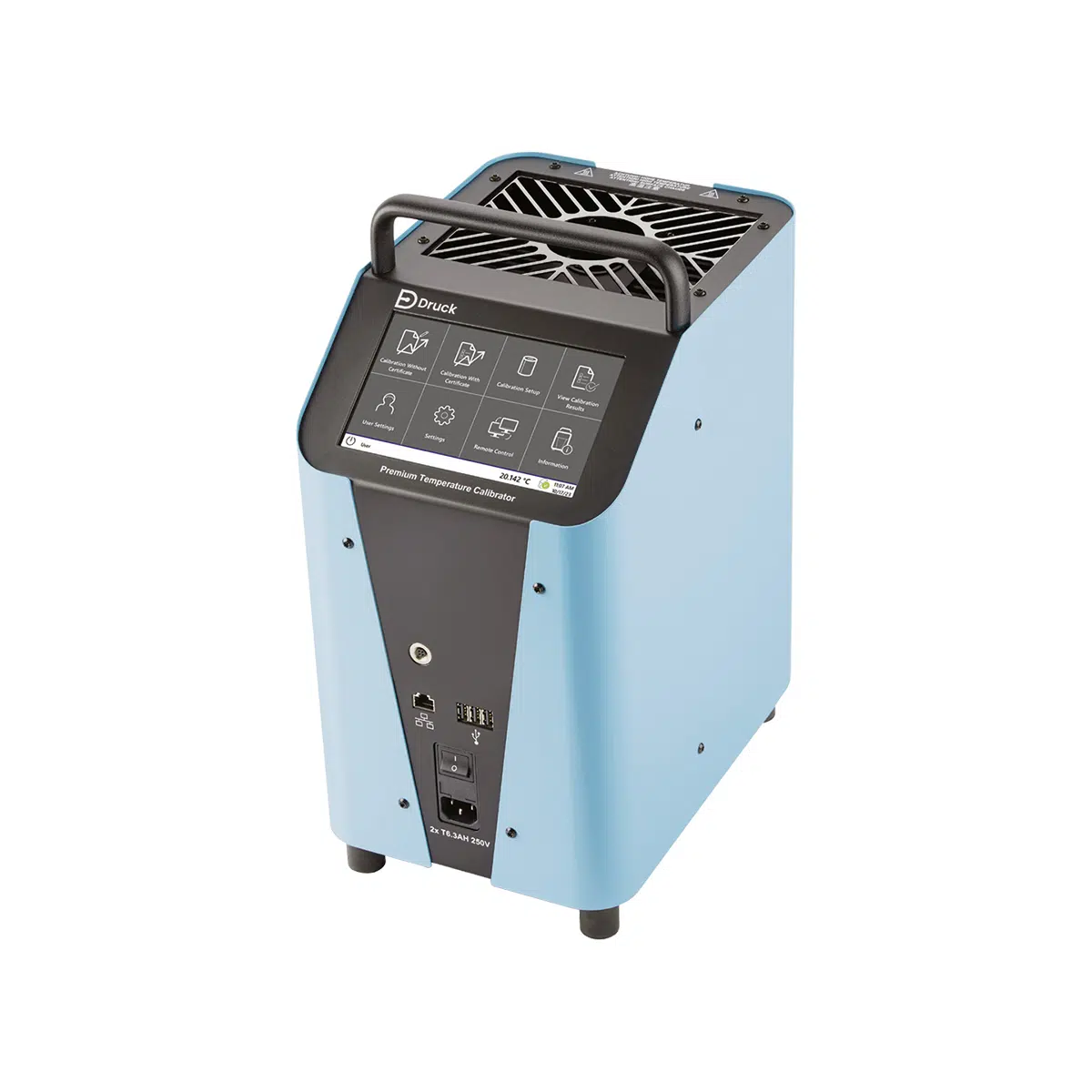

The Druck PTC200 is a premium multifunction temperature calibrator designed for high-accuracy temperature calibration across a wide operating range of -55°C to 200°C (-67°F to 392°F). Combining advanced dry block, calibration bath, infrared thermometer and surface sensor calibration capabilities, it provides a versatile solution for laboratories, pharmaceutical manufacturing, food processing, power generation and industrial process applications.
Featuring patented hybrid heating and cooling technology, the PTC200 delivers exceptional temperature stability with some of the fastest heating, cooling and stabilization times available. Its intuitive 7-inch color touchscreen simplifies calibration setup, displays reference and device-under-test temperatures, and automatically generates calibration certificates for improved traceability.
The PTC200 supports simultaneous calibration of multiple sensors using interchangeable calibration inserts and offers optional barcode scanner and camera accessories for automated calibration workflows. The standard PTC200 is a temperature calibrator only; users requiring integrated electrical measurement should select one of the PTC-i models.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PTC200 |
| Model | PTC200 |
| Product Type | Premium Multifunction Temperature Calibrator |
| Temperature Range | -55°C to 200°C (-67°F to 392°F) |
| Calibration Functions | Dry Block, Calibration Bath, Infrared & Surface Calibration |
| Measuring Module | External Measuring Instrument Required |
| Heating & Cooling Technology | Hybrid Heating with Peltier-Assisted Cooling |
| Temperature Resolution | 0.001 / 0.01 / 0.1°C (Selectable) |
| Temperature Units | °C, °F, K |
| Reference Sensor | Internal or External |
| Display | 7-inch Color Touchscreen |
| User Interface | Intuitive Touchscreen Navigation |
| Calibration Certificate | Automatic Generation |
| Device Management | Built-in |
| Barcode Scanner | Optional (IOPTC-BAR-1) |
| Camera Support | Optional (IOPTC-CAM-2 with IOPTC-CAM-1 Holder) |
| Communication Interfaces | Ethernet, 3 × USB |
| Communication Protocols | OPC UA, HTTP & Serial |
| Power Supply | 100–115 VAC / 230 VAC |
| Typical Applications | RTD, Thermocouple, Infrared & Surface Temperature Sensor Calibration |
Standard Accessories (Included)
- Druck PTC200 Temperature Calibrator
- Standard Brass Calibration Insert (Ø3.3 mm, Ø3.5 mm, Ø6.5 mm & Ø13.5 mm Bores)
- External Reference Temperature Sensor (-55°C to 255°C)
- World Plug & Power Lead Set
- Insert Exchange Tongs
- Ethernet Cable
- Traceable Factory Calibration Certificate
- Safety Manual
Optional Accessories
- Additional Calibration Inserts
- Calibration Bath Insert
- Infrared Calibration Insert (IOPTC-INF-1)
- Barcode Scanner (IOPTC-BAR-1)
- Camera Holder (IOPTC-CAM-1)
- USB Camera (IOPTC-CAM-2)
The standard kit contents and optional accessories are based on the official Druck PTC200 ordering information and datasheet.
