Description

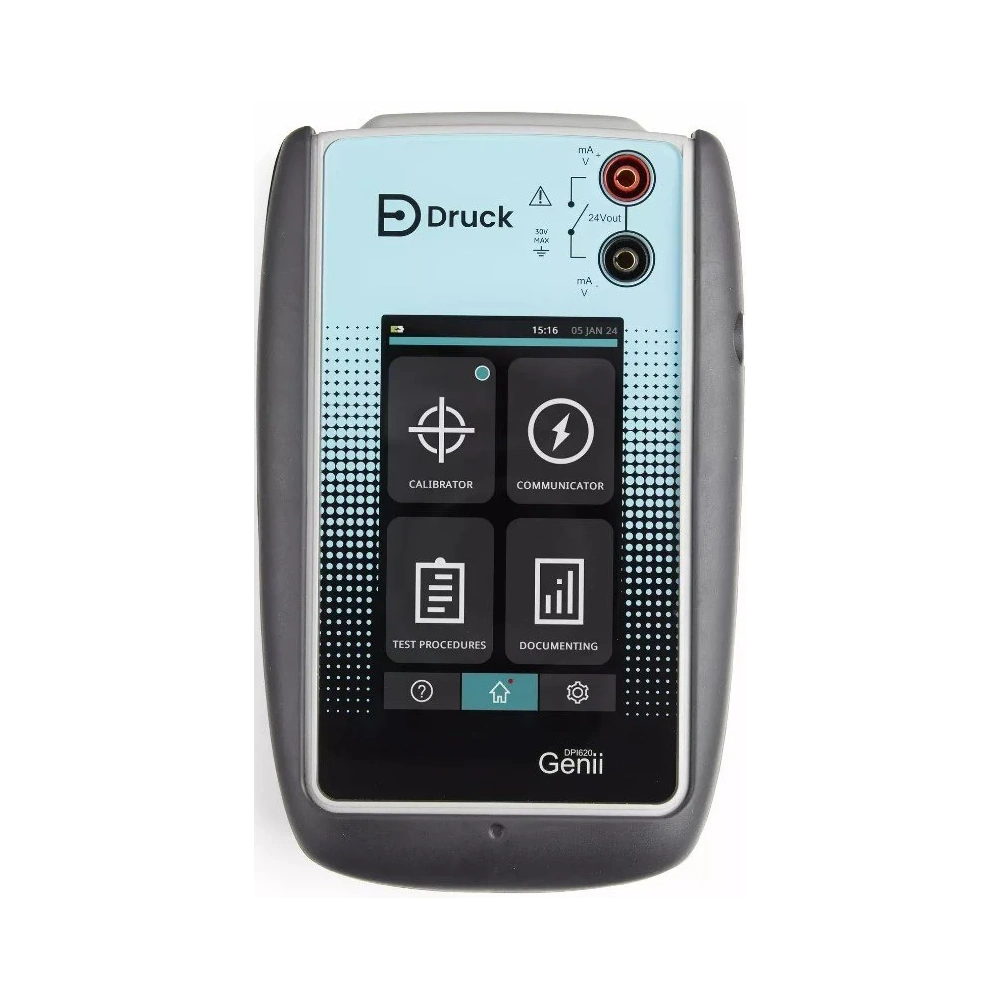

The Druck Genii DPI620G-H is a compact modular electrical calibrator and full-featured HART communicator designed for testing, calibration, configuration and diagnostics of process instrumentation in safe-area applications.
It provides electrical measurement and source capabilities together with integrated HART communication, allowing technicians to test process signals, provide loop power and configure HART-enabled field devices from a single portable instrument. The HART application supports viewing, changing, cloning and storing device configurations, as well as offline configuration and access to an upgradable device description library.
The high-resolution 4.3-inch color touchscreen provides intuitive gesture-based operation and quick access to calibration and HART functions. As part of the Genii Advanced Modular Calibration System, the DPI620G-H can also work with compatible PM620 pressure modules, MC620G pressure module carriers and PV62XG pressure-generating stations for modular pressure calibration applications.
The DPI620G-H is a cost-effective choice for technicians who require electrical calibration and HART communication without the full electrical, frequency and temperature functionality of the standard DPI620G multifunction model.
| Details | Specification |
|---|---|
| Brand | Druck |
| Series | Genii DPI620G |
| Model | DPI620G-H |
| Product Type | Electrical Calibrator & HART Communicator |
| Application Area | Safe Area Use |
| Communication Protocol | HART |
| Primary Functions | Measure, Source, Calibrate, Configure & Diagnose |
| Electrical Measurement | mA, mV & V |
| Electrical Source | mA, mV & V |
| Loop Power | 24 V / 28 V |
| HART Communicator | Integrated |
| HART Device Configuration | View, Change, Clone & Store |
| Offline HART Configuration | Supported |
| Device Description Library | Supported |
| Pressure Measurement | Supported with Compatible Modules |
| Compatible Pressure Modules | PM620 / PM620T Series |
| Compatible Module Carrier | MC620G |
| Compatible Pressure Stations | PV62XG Series |
| RTD Capability | Via Compatible USB RTD Interface |
| Display Size | 4.3 in (110 mm) Diagonal |
| Display Resolution | 480 × 800 Pixels |
| Display Type | Color Touchscreen |
| Display Protection | 2 mm Toughened Glass |
| Processor | 800 MHz |
| RAM | 512 MB SDRAM |
| Data Logging | Supported |
| Calibration Procedures | Supported |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Ingress Protection | IP55 |
| Humidity | 0 to 90% RH, Non-Condensing |
| Drop Resistance | 1 m Drop Tested |
| Dimensions | 183 × 114 × 42 mm |
| Weight | Approx. 575 g Including Battery |
| Battery Type | Rechargeable Lithium-Polymer |
| Connectivity | USB Type A & USB Type Mini B |
| Bluetooth | No – Available on DPI620G-H-B1 Variant |
| Approvals | CE & UKCA |
| Typical Applications | Electrical Calibration, HART Device Configuration, Process Instrument Testing & Maintenance |
Standard Accessories (Included)
- Rechargeable Lithium-Polymer Battery
- Universal Mains Adapter / Charger
- Test Leads
- Calibration Certificate
- Quick Reference Guide
Important: The 300 VAC True RMS measurement probe is not supplied with the DPI620G-H. Pressure modules, the MC620G carrier, PV62XG pressure stations and carrying accessories are also optional unless specifically included in the seller’s package.
Official manufacturer information: Druck DPI620G Series
