Description

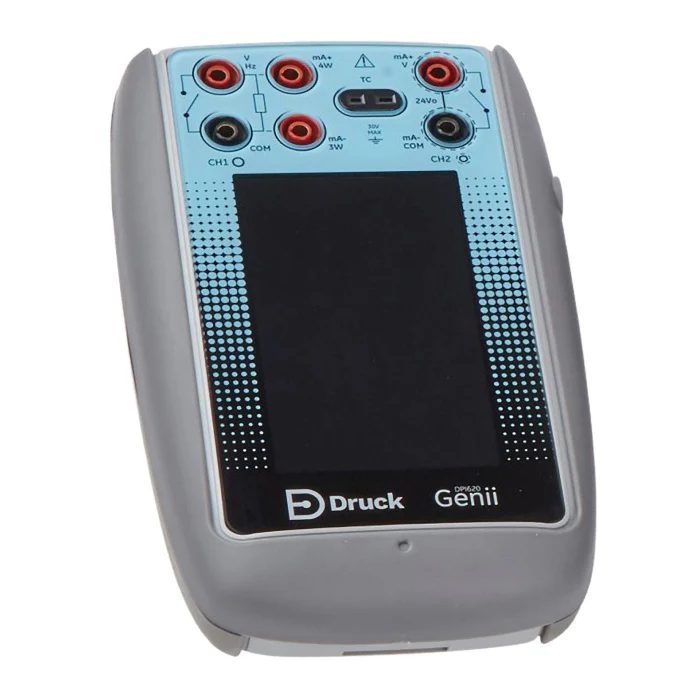

The Druck Genii DPI620G-L is an advanced modular multifunction calibrator designed for the measurement, sourcing, simulation and calibration of electrical, frequency and temperature signals in safe-area applications.
It provides simultaneous measure and source capabilities for testing and calibrating a wide range of process instruments, including transmitters, transducers, indicators, switches, RTDs, thermocouples, counters and valve positioners. The high-resolution color touchscreen provides intuitive access to calibration tasks, data logging and automated documenting functions.
The DPI620G-L is the non-communication version of the Genii multifunction calibrator, making it suitable for users who require advanced calibration capabilities without integrated HART or Foundation Fieldbus communication.
As part of the Genii Advanced Modular Calibration System, the DPI620G-L can be expanded with compatible PM620 pressure modules, the MC620G pressure module carrier and PV62XG pressure-generating stations for integrated pressure measurement and calibration.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | Genii DPI620G |
| Model | DPI620G-L |
| Product Type | Advanced Modular Multifunction Calibrator |
| Application Area | Safe Area Use |
| Communication Protocol | None |
| HART Communicator | No |
| Foundation Fieldbus | No |
| Primary Functions | Measure, Source, Simulate, Calibrate & Document |
| Supported Signals | mA, mV, V, Resistance, Frequency, RTDs & Thermocouples |
| Simultaneous Operation | Measure & Source |
| Electrical Measurement | Supported |
| Electrical Source | Supported |
| Frequency Measurement & Source | Supported |
| RTD Measurement & Simulation | Supported |
| Thermocouple Measurement & Simulation | Supported |
| Pressure Measurement | Optional with Compatible Pressure Modules |
| Compatible Pressure Modules | PM620 Series |
| Compatible Module Carrier | MC620G |
| Compatible Pressure Stations | PV62XG Series |
| Display Type | High-Resolution Color Touchscreen |
| Display Size | 4.3 in (110 mm) Diagonal |
| Display Resolution | 480 × 800 Pixels |
| Display Protection | Toughened Glass |
| Processor | 800 MHz |
| RAM | 512 MB SDRAM |
| Internal Flash Memory | 4 GB |
| Removable Memory | 8 GB |
| Data Logging | Multi-Channel |
| Automated Calibration Procedures | Supported |
| Calibration Documentation | Supported |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 0 to 90% RH, Non-Condensing |
| Drop Resistance | 1 m Drop Tested |
| Power Source | Rechargeable Battery |
| Construction | Compact, Rugged & Portable |
| Typical Applications | Process Calibration, Instrument Testing & Maintenance |
Standard Accessories (Included)
- Rechargeable Battery Pack
- Universal Mains Power Adapter
- Set of Test Leads
- 300 VAC True RMS Measurement Probe
- Stylus
- Calibration Certificate
- Quick Reference Guide
Package contents may vary by supplier and order configuration. Pressure modules, MC620G module carrier, PV62XG pressure stations and carrying accessories should be listed as optional unless confirmed as included in the specific package.
Official manufacturer information is available from the Druck DPI620 Genii product page and DPI620G datasheet.
