Description
The Druck ADTS 405 MkII is a high-accuracy, twin-channel Pitot Static Tester and Air Data Test System designed for precision calibration, verification and functional testing of aircraft pitot and static systems. It independently measures and controls static (Ps) and pitot (Pt) pressure channels, making it suitable for testing critical flight instrumentation on both fixed-wing and rotary-wing aircraft.
The system enables accurate testing of altimeters, airspeed indicators, rate-of-climb indicators, Mach meters, air data computers and other aircraft air data instruments. Its high-accuracy TERPS sensor technology supports the testing of RVSM aircraft and provides reliable performance for demanding civil and military aviation applications.
The ADTS 405 MkII supports measurement and control of altitude, airspeed, static pressure, pitot pressure, Mach, rate of climb and Engine Pressure Ratio (EPR). Programmable aircraft limits and built-in protection functions help prevent excessive pressure, airspeed, Mach or rate conditions from damaging the aircraft instruments under test.

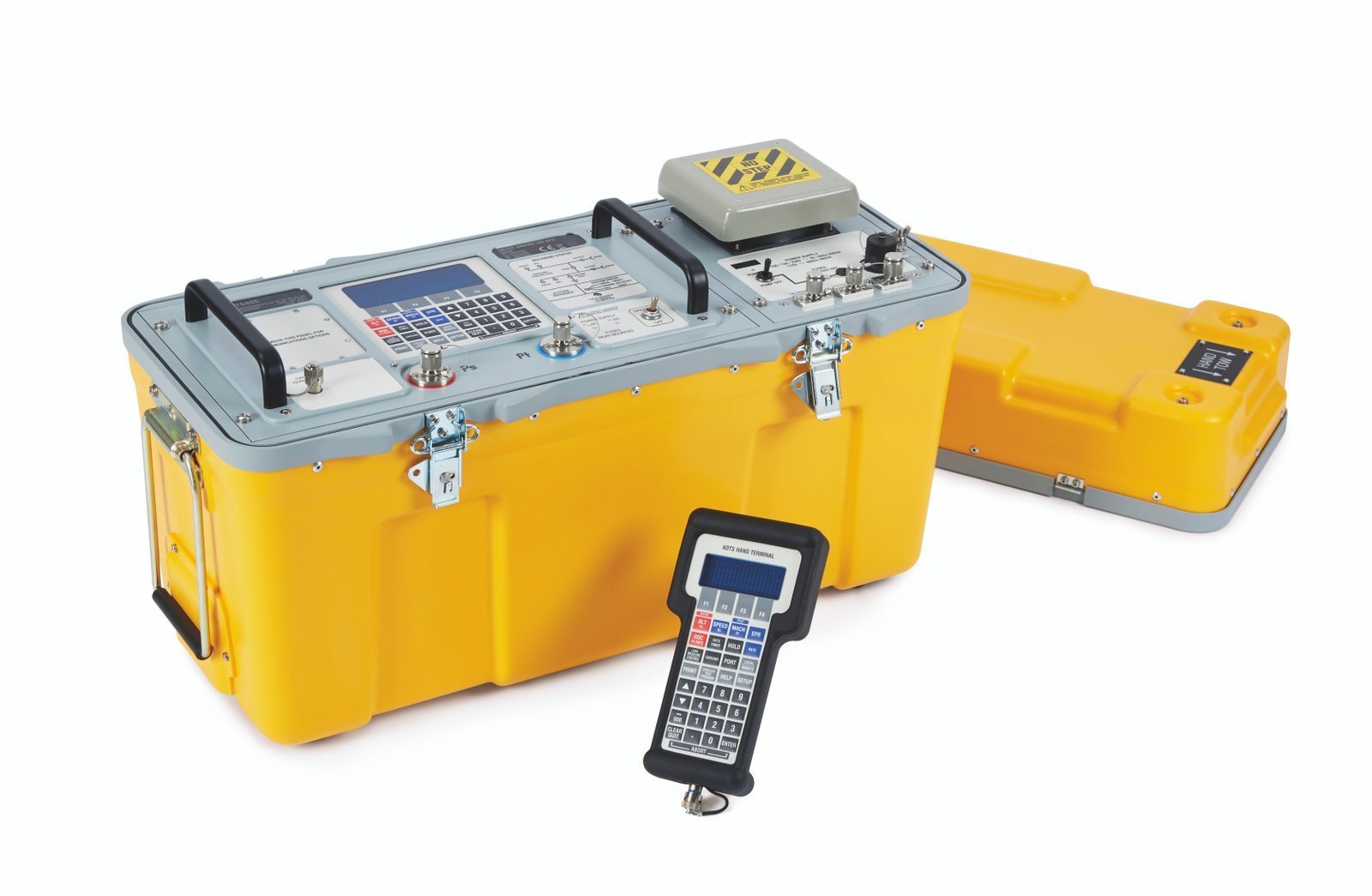

Available in rack-mounted and transportable flightline configurations, the ADTS 405 MkII can be operated from its local keypad and display or through a remote hand terminal. The flightline version includes integral pressure and vacuum supplies for self-contained aircraft testing, while the rack-mounted version is designed for laboratory, workshop and automated test equipment applications.
| Specification | Details |
|---|---|
| Brand | Druck |
| Model | ADTS 405 MkII |
| Product Type | Pitot Static Tester / Air Data Test System |
| System Type | Twin-Channel Pressure Measurement & Control |
| Pressure Channels | Static (Ps) & Pitot (Pt) |
| Aircraft Compatibility | Fixed-Wing & Rotary-Wing Aircraft |
| RVSM Testing | Supported |
| Sensor Technology | High-Accuracy TERPS |
| Altitude Range | -3,000 to 80,000 ft (-914 to 24,384 m) |
| Extended Altitude Capability | Up to 105,000 ft with Suitable Vacuum Supply |
| Altitude Resolution | 1 ft (0.3 m) |
| Static Pressure Range | 35 to 1,355 mbar Absolute |
| Static Pressure Resolution | 0.01 mbar |
| Static Pressure Accuracy | ±0.1 mbar |
| Airspeed Range | 10 to 850 knots or 10 to 1,000 knots, Depending on Configuration |
| Airspeed Resolution | 0.1 knot |
| Pitot Pressure Range | 35 to 2,700 mbar Absolute or 35 to 3,500 mbar Absolute |
| Pitot Pressure Resolution | 0.01 mbar |
| Rate of Climb | 0 to 6,000 ft/min Standard |
| Rate of Climb Resolution | 1 ft/min |
| Mach Range | 0.6 to 10.000 |
| Mach Resolution | 0.001 |
| Engine Pressure Ratio (EPR) | 0.1 to 10 |
| EPR Resolution | 0.001 |
| Operating Modes | Measure, Control & Leak Test |
| Controlled Parameters | Ps, Pt, Qc, Altitude, Airspeed, Mach, Rate of Climb & EPR |
| Display Units | ft, knots, inHg, mbar, psi, inH₂O & Other Selectable Units |
| Aircraft Protection | Programmable Operating Limits |
| Ground Function | Controlled Vent to Atmospheric Pressure |
| Local Operation | Front-Panel Keypad & Display |
| Remote Operation | Remote Hand Terminal |
| Computer Interface | Remote Computer Control Supported |
| Flightline Version | Self-Contained with Integral Pressure & Vacuum Supplies |
| Rack Version | 19-Inch Rack-Mounted Configuration |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -51°C to +71°C |
| Humidity | 0 to 100% Condensing |
| Shock & Vibration | MIL-PRF-28800 Class 2 |
| Electrical & Mechanical Safety | EN 61010 |
| EMC Compliance | EN 61326-1 |
| Compliance | CE & RoHS II |
| Typical Applications | Aircraft Pitot-Static Testing, Air Data Instrument Calibration & Functional Testing |
Standard Accessories (Included)
For the applicable flightline configuration, the standard documentation identifies:
- Remote Control Hand Terminal
- 18 m (59 ft) Remote Terminal Cable
- 2 m (6.5 ft) Remote Terminal Cable
- Operator’s Manual
- Safety Manual
- Calibration Certificate
- Wheels for Transportable Flightline Unit
The remote hand terminal is standard for the flightline version but optional for the ADTS 405RS rack-mounted version. Additional power cables, output hose styles and other accessories vary by ordered configuration and should not be listed as standard unless confirmed for the exact part number.
Official manufacturer references: Druck ADTS 405 MkII Datasheet and Druck Air Data Test Sets.
