Description

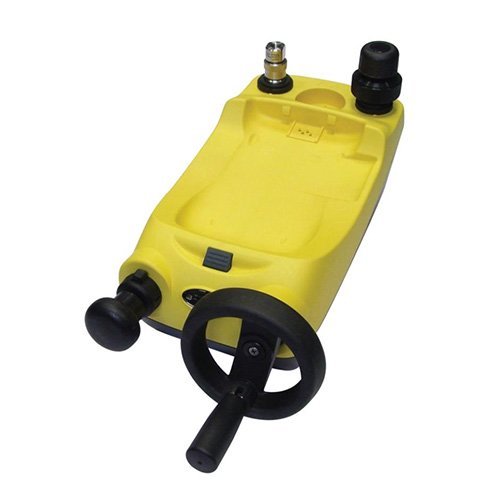

The Druck PV621-IS is an intrinsically safe pneumatic pressure generating base station designed for pressure generation and calibration applications in hazardous areas. It generates pressure from 95% vacuum up to 20 bar (300 psi) using a manual hand pump, providing a portable and efficient alternative to conventional hand pumps.
The pressure station features an integrated volume adjuster and pressure/vacuum selector for fast pressure generation and precise adjustment. Its self-contained design allows stand-alone use as a pressure generator or bench-top comparator for testing and calibrating pressure instruments.
As part of the Druck Genii Advanced Modular Calibration System, the PV621-IS can be combined with a compatible PM620-IS pressure module and DPI620G-IS multifunction calibrator to create a fully integrated intrinsically safe pressure calibration system. The quick-fit pressure connection system enables fast, tool-free connection to the device under test without sealing tape.
Designed for demanding industrial environments, the PV621-IS is ATEX, IECEx and ETL intrinsically safe approved for use in specified hazardous locations. It is suitable for calibrating pressure transmitters, gauges, switches, sensors and other process instruments.
| Specification | Details |
|---|---|
| Brand | Druck |
| Series | PV62X-IS |
| Model | PV621-IS |
| Product Type | Pneumatic Pressure Generating Base Station |
| Safety Type | Intrinsically Safe |
| Pressure Generation | Manual Pneumatic |
| Pressure Range | 95% Vacuum to 20 bar |
| Pressure Range (psi) | Approx. -13.5 to 300 psi |
| Maximum Pressure | 20 bar (300 psi) |
| Vacuum Capability | 95% Vacuum / -950 mbar |
| Pressure Media | Non-Corrosive Gases |
| Minimum Resolution | 0.001 bar (0.0145 psi), with Typical Test Volume |
| Pump Type | Manual Hand Pump |
| Pressure Adjustment | Integrated Volume Adjuster |
| Pressure / Vacuum Selection | Integrated Selector |
| Stand-Alone Operation | Yes |
| Comparator Use | Yes |
| Pressure Connection System | Quick-Fit, Tool-Free |
| Pressure Adaptors | Interchangeable G1/8 Female & 1/8 NPT Female |
| Compatible Calibrator | DPI620G-IS |
| Compatible Pressure Modules | PM620-IS Series |
| Modular System | Druck Genii Advanced Modular Calibration System |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Hazardous Area Approval | ATEX & IECEx Intrinsically Safe |
| ATEX / IECEx Classification | II 2G Ex ia IIC T4 Gb |
| ETL Approval | Class I, Zone 1, AEx/Ex ia IIC T4 |
| Pressure Safety | Pressure Equipment Directive, SEP |
| Construction | Portable & Rugged |
| Typical Applications | Pressure Generation, Calibration, Testing & Instrument Maintenance |
| Suitable Instruments | Pressure Transmitters, Gauges, Switches & Sensors |
Standard Accessories (Included)
- G1/8 Female Pressure Adaptor
- 1/8 NPT Female Pressure Adaptor
- Carry Strap
- Quick Reference Guide
Current manufacturer documentation lists these items with the PV621-IS configuration. Older documentation may also reference a user-manual CD, so this should only be added to an e-commerce listing if confirmed in the actual supplier package.
Pressure modules, the DPI620G-IS calibrator, pressure relief valves, carrying case and adaptor sets are optional and should not be listed as standard included accessories.
Official manufacturer references: Druck PV620 Series product page and Druck PV620-IS Series datasheet
