Description

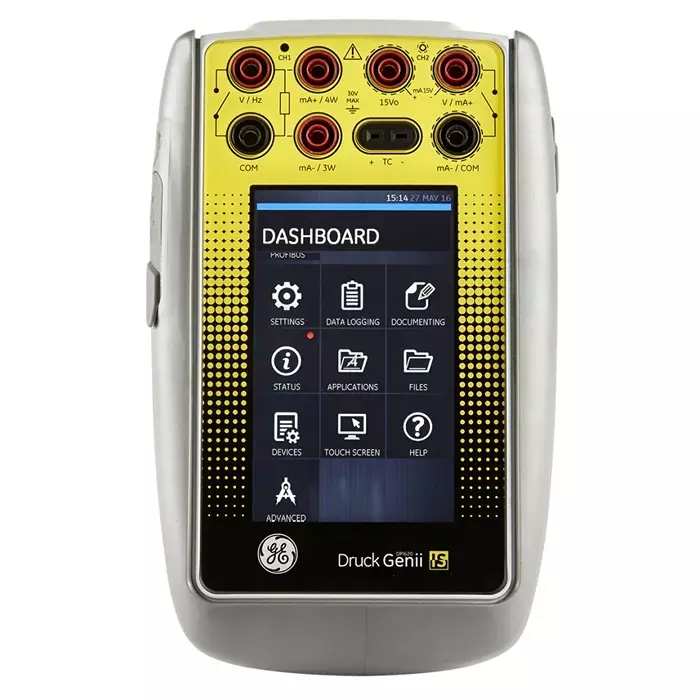

The Druck Genii DPI620G-IS-FF is an intrinsically safe advanced modular multifunction calibrator designed for calibration, testing, configuration and diagnostics of process instrumentation in hazardous areas. Combining high-accuracy electrical, frequency and temperature calibration with full HART and Foundation Fieldbus communication, it provides a powerful all-in-one solution for field technicians, calibration engineers and process maintenance professionals.
The DPI620G-IS-FF supports simultaneous measurement and source functions for a wide range of process devices, including transmitters, transducers, gauges, indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners. Its high-resolution 4.3-inch color touchscreen provides intuitive gesture-based navigation and quick access to Calibrator, HART and Foundation Fieldbus applications.
Designed as part of the Druck Genii Advanced Modular Calibration System, the instrument can be expanded with compatible intrinsically safe MC620-IS pressure module carriers, PM620-IS pressure modules and PV62X-IS pressure-generating stations for integrated pressure measurement and generation. The rugged, portable design is ATEX, IECEx and ETL approved for use in specified hazardous locations.
Advanced documenting and data-logging capabilities allow calibration procedures to be created, stored and executed in the field. The instrument can record multiple channels, calculate input/output errors and save calibration results for traceability and transfer to a PC.
| Attribute | Specification |
|---|---|
| Brand | Druck |
| Series | Genii DPI620G |
| Model | DPI620G-IS-FF |
| Product Type | Advanced Modular Multifunction Calibrator |
| Safety Version | Intrinsically Safe (IS) |
| Primary Functions | Measure, source, simulate, calibrate, configure and document |
| Communication Protocols | HART and Foundation Fieldbus |
| Application Area | Hazardous-area process calibration and instrumentation maintenance |
| Measurement / Source Functions | mA, mV, V, resistance, frequency, RTDs and thermocouples |
| Pressure Capability | Expandable using compatible PM620-IS modules and modular pressure-system components |
| Compatible Pressure Module Carrier | MC620-IS |
| Compatible Pressure Modules | PM620-IS Series |
| Compatible Pressure Stations | PV62X-IS Series |
| Display Size | 110 mm (4.3 in) diagonal |
| Display Resolution | 480 × 800 pixels |
| Display Type | Color LCD touchscreen |
| Display Protection | 2 mm toughened glass |
| User Interface | Touchscreen with gesture and swipe navigation |
| Maximum Displayed Parameters | Up to 5 parameters simultaneously on DPI620G-IS |
| Processor | 800 MHz |
| RAM | 512 MB, 800 MHz SDRAM |
| Internal Memory | 8 GB flash memory |
| Data Logging | Multi-channel data logging |
| Documenting Function | Automatic calibration procedures and result storage |
| Calibration Wizard | Yes |
| HART Functions | Device configuration, calibration, cloning, storage and offline configuration |
| Foundation Fieldbus Functions | Device configuration and calibration with device description library |
| Loop Power | 15 V for Genii-IS Series |
| Languages | English, Chinese, French, German, Italian, Portuguese, Russian, Spanish, Dutch and Japanese |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +70°C (-4°F to 158°F) |
| Ingress Protection | IP54 |
| Humidity | 0 to 90% RH, non-condensing |
| Drop Resistance | 1 m drop tested |
| EMC Compliance | BS EN 61326-1 |
| Electrical Safety | BS EN 61010-1 |
| Pressure Safety | Pressure Equipment Directive, Sound Engineering Practice (SEP) |
| Hazardous-Area Approval | ATEX and IECEx Intrinsically Safe |
| ATEX / IECEx Classification | II 2G Ex ib IIC T4 Gb |
| ETL Approval | Class I, Zone 1, AEx/Ex ib IIC T4 Gb |
| Ambient Certification Range | -10°C to +50°C |
| Dimensions (L × W × H) | 183 × 114 × 55 mm (7.2 × 4.5 × 2.2 in) |
| Weight | Approx. 1.1 kg (2.4 lb), including battery |
| Battery Type | Rechargeable lithium-ion |
| Battery Part Number | IO620G-IS-BATTERY |
| Battery Capacity | 4000 mAh |
| Nominal Battery Voltage | 3.65 V |
| Battery Charging | External charging in a safe area only |
| Battery Charger | IO620G-IS-CHARGER |
| Universal Power Adapter | IO620-PSU |
| Approvals / Marking | CE and UKCA |
| Typical Applications | Process transmitters, transducers, switches, RTDs, thermocouples, valve positioners, gauges and indicators |
Standard Accessories (Included)
According to the manufacturer documentation for the DPI620G-IS Series, the standard package includes:
- Druck DPI620G-IS-FF multifunction calibrator
- Rechargeable lithium-ion battery pack — IO620G-IS-BATTERY
- Universal mains power adapter — IO620-PSU
- External battery charger — IO620G-IS-CHARGER
- Set of six test leads
- Stylus
- Calibration certificate
- Quick Start / Safety Guide
